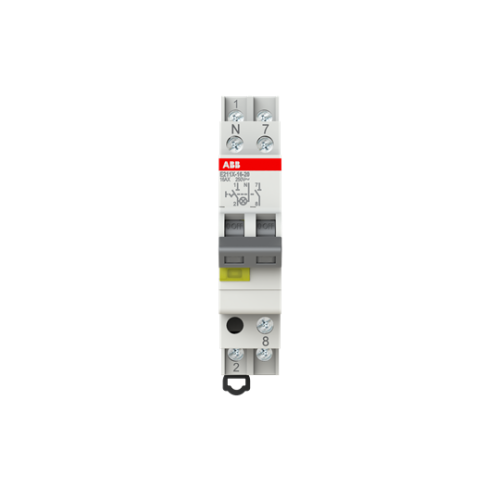

2CCA703110R0001

ON-OFF Switch, 16 A, acc. to EN 250/400 V AC, 2NO, El. Color: Grey, 1LED, Yellow, MW: 1

Manufacturer's No: E211X-16-20     Manufacturer: ABB
ON-OFF Switch, 16 A, acc. to EN 250/400 V AC, 2NO, El. Color: Grey, 1LED, Yellow, MW: 1

Availability On Request

£27.06
  • ON-OFF Switch
  • Rated Current: 16 A
  • Voltage: 250/400 V AC
  • Contact Configuration: 2NO
  • Color: Grey with 1 Yellow LED
  • Switch Position Indication
  • Conforms to DIN EN 60669-1, VDE 0632 Part 1
  • Contacts: 1 NO/2 NO/3 NO
  • Module Width Options: 0.5/1


Product

Manufacturer Material ID -
E211X-16-20
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Rated switching capacity -
- kiloampere
Lamp socket -
UN
With signal lamp -
Built-in depth -
68 Millimetre
Max. lamp power -
0.18 Watt
Lamp type -
LED
Colour calotte -
Grey
Forced segregation (according to DIN VDE 0113) -
Degree of protection (IP) -
IP20
Colour light source -
Grey
Degree of protection (IP rating) -
IP20
Light source type -
LED
Min. rated voltage -
400 Volt
Number of contacts as normally open contact -
2
Number of poles -
2
Rated current -
16 Ampere
Rated voltage -
400 Volt
Recess depth -
68 Millimetre
Short-circuit breaking capacity (Icw) -
3 kiloampere
Switching function -
Other
Voltage type -
Other
Width in number of modular spacings -
1
With indicator lamp -
ABB

Availability On Request

£27.06
