2CCA703152R0001

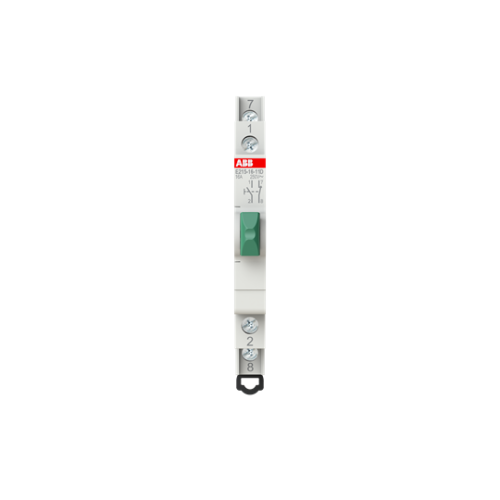

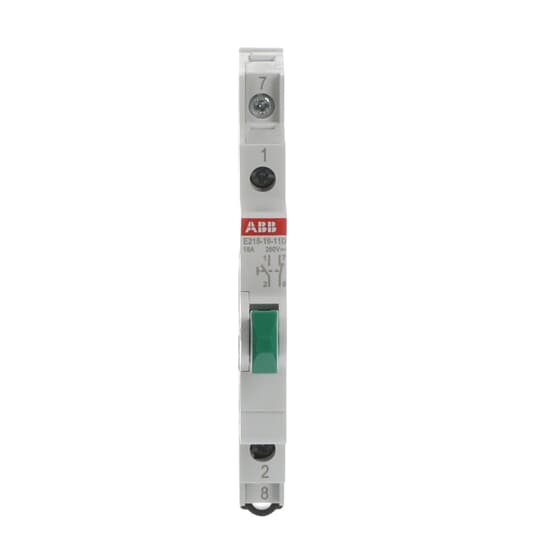

Pushbutton, 16 A, acc. to EN 250 V AC, 1NO, 1NC, El. Color: Green, MW: 0.5

Manufacturer's No: E215-16-11D     Manufacturer: ABB
Pushbutton, 16 A, acc. to EN 250 V AC, 1NO, 1NC, El. Color: Green, MW: 0.5

Availability On Request

£17.92
  • Pushbutton switch
    • 16A, 250V AC according to EN standards
    • 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact
    • Green button color
    • Module width: 0.5 units


Product

Manufacturer Material ID -
E215-16-11D
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Colour calotte -
UN
Voltage type -
AC
Switching current -
16 Ampere
Built-in depth -
68 Millimetre
Lamp type -
Not applicable
Lamp socket -
Not applicable
Degree of protection (IP) -
IP20
Colour button -
Green
Degree of protection (IP rating) -
IP20
Lamp voltage -
48 Volt
Max. lamp power -
0.72 Watt
Number of contacts as change-over contact -
0
Recess depth -
68 Millimetre
Switching voltage -
250 Volt
Width in number of modular spacings -
0.5
ABB

Availability On Request

£17.92
