2CCA703263R0001

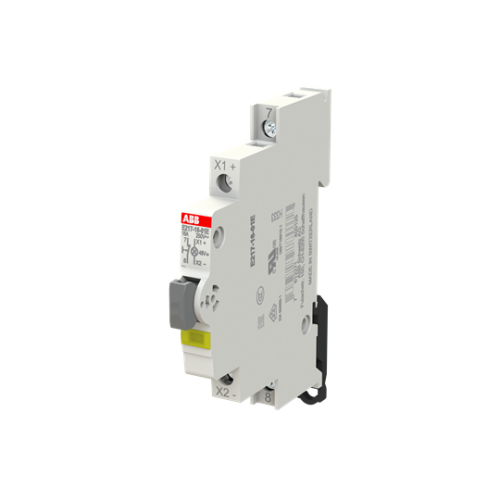

Luminous Pushbutton, 16 A, acc. to EN 250 V AC, 1NC, El. Color: Grey, 1LED, Yellow, MW: 0.5

Manufacturer's No: E217-16-01E48     Manufacturer: ABB
Luminous Pushbutton, 16 A, acc. to EN 250 V AC, 1NC, El. Color: Grey, 1LED, Yellow, MW: 0.5

Availability On Request

£24.06
  • Luminous Pushbutton
  • Rated current: 16A at 250 VAC
  • 1 Normally Closed (NC) contact
  • LED color: Yellow
  • Maintenance-free LED
  • LED voltage range: 115-250 VAC / 12-48 VDC / 110-220 VDC
  • Module width: 0.5


Product

Manufacturer Material ID -
E217-16-01E48
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Voltage type -
AC
Switching current -
16 Ampere
With signal lamp -
Built-in depth -
68 Millimetre
Lamp type -
LED
Colour calotte -
Yellow
Lamp socket -
Other
Degree of protection (IP) -
IP20
Colour button -
Yellow
Degree of protection (IP rating) -
IP20
Lamp voltage -
48 Volt
Max. lamp power -
0.72 Watt
Number of contacts as change-over contact -
0
Recess depth -
68 Millimetre
Switching voltage -
250 Volt
Width in number of modular spacings -
0.5
With indicator lamp -
ABB

Availability On Request

£24.06
