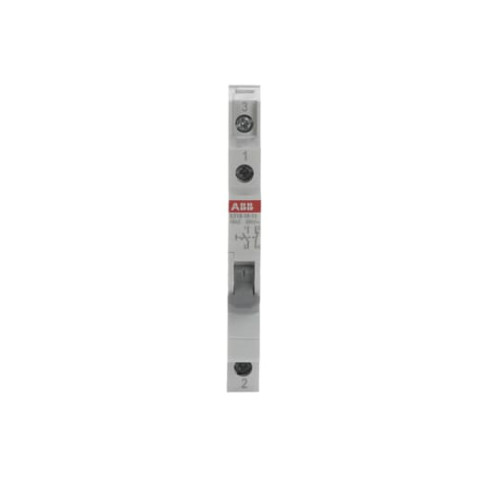

2CCA703050R0001

Control Switch, 16 A, acc. to EN 250 V AC, 1NO, 1NC, El. Color: Grey, MW: 0.5

Manufacturer's No: E218-16-11     Manufacturer: ABB

Availability Back Order

£17.57
  • Control Switch: 16 A, 250 V AC, 1NO, 1NC
  • Color: Grey
  • Conforms to DIN EN 60669-1, VDE 0632 Part 1 standards
  • Rated currents: 16/25 A, 250 V AC/DC
  • Contacts: 2 NO + 2 NC / 3 NO + 1 NC / 1 NO + 1 NC
  • Module width: 0.5/1


Product

Manufacturer Material ID -
E218-16-11
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Max. lamp power -
- Watt
Lamp type -
UN
Rated switching capacity -
- kiloampere
Lamp socket -
UN
Built-in depth -
68 Millimetre
Colour calotte -
Grey
Forced segregation (according to DIN VDE 0113) -
Degree of protection (IP) -
IP20
Colour light source -
Grey
Degree of protection (IP rating) -
IP20
Min. rated voltage -
250 Volt
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of poles -
2
Rated current -
16 Ampere
Rated voltage -
250 Volt
Recess depth -
68 Millimetre
Short-circuit breaking capacity (Icw) -
3 kiloampere
Switching function -
Other
Voltage type -
Other
Width in number of modular spacings -
0.5
