2CDE110003R0511

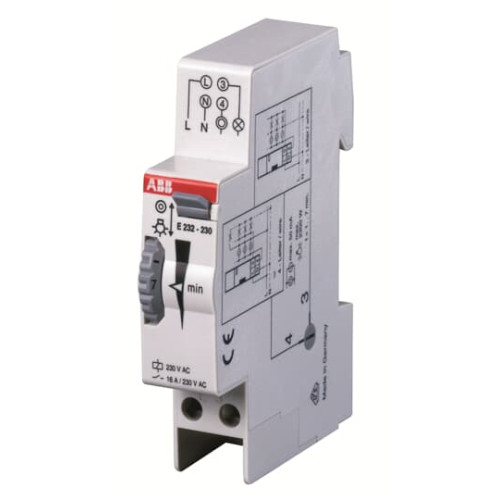

E232E-230N Staircase Switch

Manufacturer's No: E232E-230N     Manufacturer: ABB
E232E-230N Staircase Switch

Availability Back Order

£83.97
  • Staircase time switch with off-delay operated by push-buttons
  • Designed for glow lamp current up to 150 mA, ideal for multistorey buildings
  • Electromechanical timer relay with synchronous motor drive for high operational safety
  • Time range adjustable in 15-second increments from 1 to 7 minutes
  • Can be reswitched after 30 seconds
  • E 232E-230 Multi 10 and E 232E-8/230 Multi 10 series offer 10 programmable functions on the front panel


Product

Manufacturer Material ID -
E232E-230N
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Type of control voltage 2 -
UN
Frequency control voltage 2 -
- Hertz
Wiring system -
UN
Max. load fluorescent lamp (Duo circuit) -
- Voltampere
Max. load fluorescent lamp (parallel compensated) -
- Voltampere
Mounting method -
DIN rail
Built-in depth -
59 Millimetre
Release-delay -
0.5 Minute
Width in number of modular spacings -
1
Type of control voltage 1 -
AC
Frequency control voltage 1 -
50 Hertz
Repetitive -
Repetitive + continuous light
Voltage type of supply voltage -
AC
Max. switching current (cos phi = 0.6) -
16 Ampere
Max. incandescent lamp load -
2300 Watt
Max. load fluorescent lamp -
2300 Voltampere
Rated switch current -
16 Ampere
Push button glow-lamp current -
150 Milliampere
Function -
Electronic
Control voltage 1 -
230 Volt
Control voltage 2 -
230 Volt
Pre-warning of switching-off -
Flickering
Supply voltage -
0.85 Volt
ABB

Availability Back Order

£83.97
