2CDE141000R0301

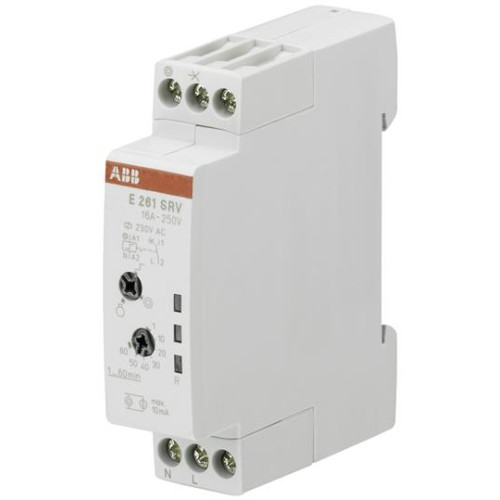

E261-230 Latching relay

Manufacturer's No: E261-230V     Manufacturer: ABB
E261-230 Latching relay

Availability Back Order

POA
  • Model: E261-230 Latching Relay
  • Maximum reliability, long lifespan, and noiseless operation
  • Centralized reset function (ON/OFF) available in 260°C version


Product

Manufacturer Material ID -
E261-230V
Net Weight -
0.06kg

Additional Product Information

Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Control voltage 2 -
- Volt
Type of control voltage 2 -
UN
Frequency control voltage 2 -
- Hertz
Mounting method -
DIN rail
Function -
Electronic group switch
Built-in depth -
58 Millimetre
Width in number of modular spacings -
1
Control voltage 1 -
253 Volt
Type of control voltage 1 -
AC
Frequency control voltage 1 -
60 Hertz
Voltage type of supply voltage -
AC
Supply voltage -
250 Volt
Max. switching current (cos phi = 0.6) -
5 Ampere
Max. incandescent lamp load -
1000 Watt
Max. load fluorescent lamp -
500 Voltampere
Max. load fluorescent lamp (Duo circuit) -
1000 Voltampere
Max. load fluorescent lamp (parallel compensated) -
350 Voltampere
Rated switch current -
5 Ampere
ABB

Availability Back Order

POA
