2TAZ312000R2031

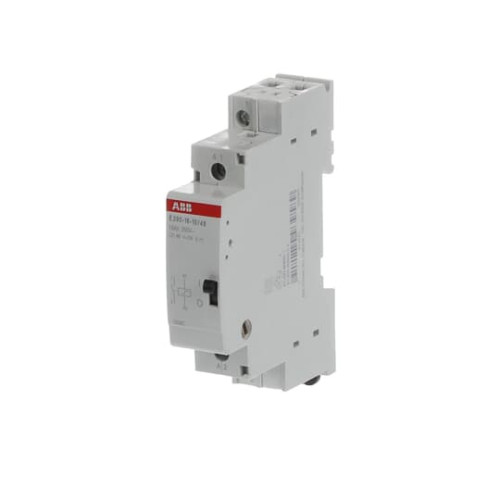

E290-16-10/48 Electromechanical latching relay

Manufacturer's No: E290-16-10/48     Manufacturer: ABB
E290-16-10/48 Electromechanical latching relay

Availability On Request

£54.29
  • E290-16-10/48 Electromechanical latching relay
  • Can be used for energy-saving lighting control systems
  • Suitable for private houses, factory premises, commercial and public buildings, and industrial plants
  • Operated by impulse buttons for controlling lighting from at least three different places
  • Rated currents of 16 and 32A
  • Designed for safe and reliable interlock operation
  • Combinable accessories for versatile market applications


Product

Manufacturer Material ID -
E290-16-10/48
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Built-in depth -
68 Millimetre
Control voltage 1 -
48 Volt
Control voltage 2 -
24 Volt
Type of control voltage 1 -
AC
Type of control voltage 2 -
DC
Max. incandescent lamp load -
3000 Watt
Max. load fluorescent lamp -
3000 Voltampere
Max. load fluorescent lamp (Duo circuit) -
2500 Voltampere
Manual operation possible -
Function -
Electronic for centralized control
Voltage type of supply voltage -
AC
Max. load fluorescent lamp (parallel compensated) -
3000 Voltampere
Frequency control voltage 1 -
50 Hertz
Frequency control voltage 2 -
50 Hertz
Manual operation -
Max. switching current (cos phi = 0.6) -
16 Ampere
Mounting method -
Other
Number of contacts as normally open contact -
1
Rated switch current -
16 Ampere
Recess depth -
68 Millimetre
Supply voltage -
43.2 Volt
Width in number of modular spacings -
1
