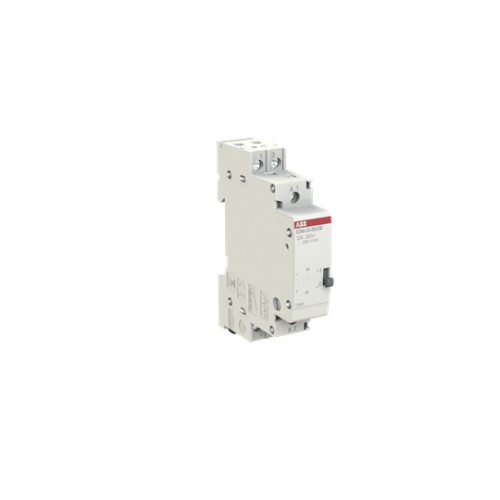

E290-32-20/230 Electromechanical latching relay

Manufacturer's No: E290-32-20/230     Manufacturer: ABB
E290-32-20/230 Electromechanical latching relay

Availability On Request

£100.66
  • Model: E290-32-20/230 Electromechanical latching relay
  • Operated by electrical pulses to control lighting systems
  • Suitable for private houses, factories, commercial buildings, and industrial plants
  • Designed for rated currents of 16A and 32A
  • Main modules can be used in various market applications with combinable accessories


Product

Manufacturer Material ID -
E290-32-20/230
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Built-in depth -
68 Millimetre
Control voltage 1 -
230 Volt
Control voltage 2 -
110 Volt
Type of control voltage 1 -
AC
Type of control voltage 2 -
DC
Max. incandescent lamp load -
4000 Watt
Max. load fluorescent lamp -
4000 Voltampere
Max. load fluorescent lamp (Duo circuit) -
3200 Voltampere
Manual operation possible -
Function -
Electronic for centralized control
Voltage type of supply voltage -
AC/DC
Max. load fluorescent lamp (parallel compensated) -
4000 Voltampere
Frequency control voltage 1 -
50 Hertz
Frequency control voltage 2 -
50 Hertz
Manual operation -
Max. switching current (cos phi = 0.6) -
32 Ampere
Mounting method -
Other
Number of contacts as normally open contact -
2
Rated switch current -
32 Ampere
Recess depth -
68 Millimetre
Supply voltage -
250 Volt
Width in number of modular spacings -
1
