2TAZ311000R2031

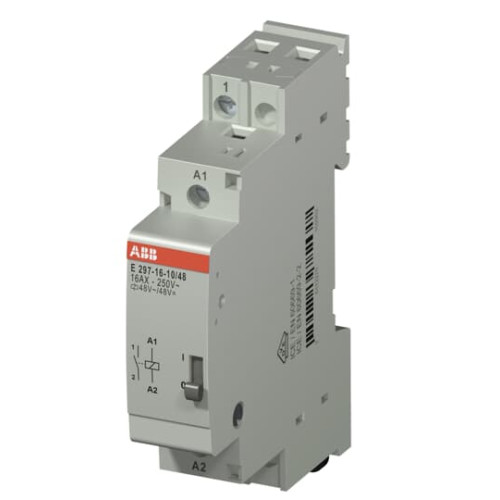

E297-16-10/48 Installation relay

Manufacturer's No: E297-16-10/48     Manufacturer: ABB
E297-16-10/48 Installation relay

Availability On Request

£44.02
  • E297-16-10/48 Installation relay
  • Electromagnetically operated miniature contactors in standard DIN width of 18 mm
  • Reliable control system design using ABB Installation relays E297
  • Mainly used in industrial plants, commercial, and public buildings
  • Operated by control switch for lighting, air-conditioning, fans, etc.
  • Also known as monostable switching relays or 2-pole miniature contactors
  • Monostable operation requires on command to excite magnetic coil
  • Returns to off position when control voltage is interrupted
  • Available in different versions to meet market requirements
  • Suitable for industrial environments and controlling powerful consumers

Read more

  • Optimized coil for lower power loss and safe operation in electrical distribution board


Product

Manufacturer Material ID -
E297-16-10/48
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Max. switching current (cos phi = 0.6) -
- Ampere
Max. incandescent lamp load -
- Watt
Max. load fluorescent lamp (Duo circuit) -
- Voltampere
Max. load fluorescent lamp (parallel compensated) -
- Voltampere
Function -
Mechanical
Built-in depth -
62 Millimetre
Control voltage 1 -
48 Volt
Control voltage 2 -
48 Volt
Type of control voltage 1 -
AC
Type of control voltage 2 -
DC
Frequency control voltage 1 -
0 Hertz
Frequency control voltage 2 -
0 Hertz
Max. load fluorescent lamp -
1800 Voltampere
Mounting method -
DIN rail
Number of contacts as normally open contact -
1
Rated current -
16 Ampere
Recess depth -
62 Millimetre
Supply voltage -
43.2 Volt
Voltage type of supply voltage -
AC
Width in number of modular spacings -
1
