2TAZ311000R2012

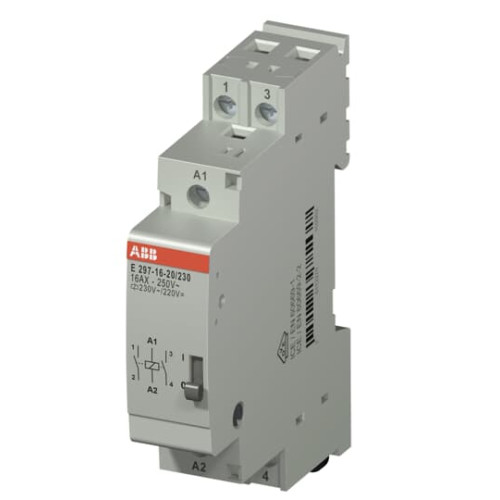

E297-16-20/230 Installation relay

Manufacturer's No: E297-16-20/230     Manufacturer: ABB
E297-16-20/230 Installation relay

Availability On Request

£45.75
  • ABB Installation Relay E297-16-20/230
  • Electromagnetically operated miniature contactors in standard DIN width of 18 mm
  • Used in industrial plants, commercial buildings, and public buildings
  • Operated by a control switch for lighting, air-conditioning systems, fans, etc.
  • Also known as monostable switching relays or 2-pole miniature contactors
  • Requires an on command from a control switch to excite the magnetic coil
  • Returns to off position when control voltage is interrupted
  • Available in different versions to meet market requirements
  • Optimal switching capacity for industrial environments and controlling powerful consumers
  • Optimized coil for lower power loss and safer operation in electrical distribution boards


Product

Manufacturer Material ID -
E297-16-20/230
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Control voltage 2 -
- Volt
Type of control voltage 2 -
UN
Frequency control voltage 2 -
- Hertz
Max. switching current (cos phi = 0.6) -
- Ampere
Max. incandescent lamp load -
- Watt
Max. load fluorescent lamp (Duo circuit) -
- Voltampere
Max. load fluorescent lamp (parallel compensated) -
- Voltampere
Function -
Mechanical
Built-in depth -
62 Millimetre
Control voltage 1 -
230 Volt
Type of control voltage 1 -
AC
Frequency control voltage 1 -
0 Hertz
Max. load fluorescent lamp -
1800 Voltampere
Mounting method -
DIN rail
Number of contacts as normally open contact -
2
Rated current -
16 Ampere
Recess depth -
62 Millimetre
Supply voltage -
207 Volt
Voltage type of supply voltage -
AC
Width in number of modular spacings -
1
