2CCA704321R0001

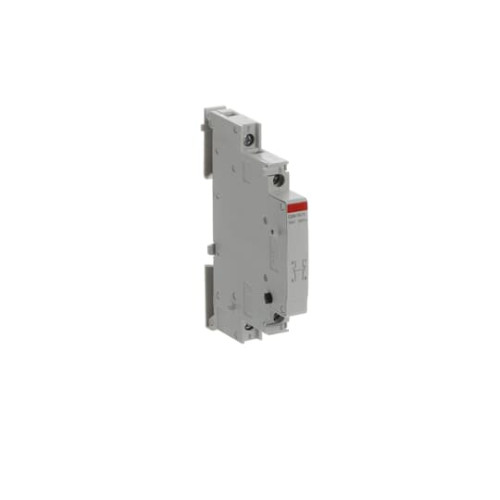

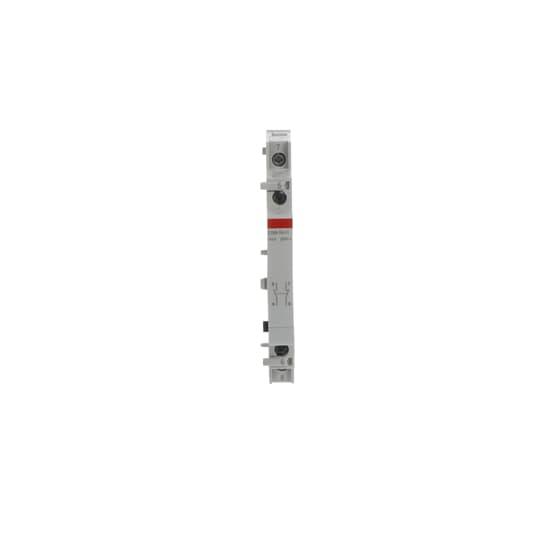

E298-16-11 Main contact module 16A, 1NO+1NC

Manufacturer's No: E298-16-11     Manufacturer: ABB
E298-16-11 Main contact module 16A, 1NO+1NC

Availability On Request

£31.64
  • ABB Installation relays E298-16-11 Main contact module
  • 16A, 1NO+1NC
  • Electromagnetically operated miniature contactors
  • Standard DIN width of 18 mm
  • Ideal for industrial plants, commercial, and public buildings
  • Used for operating lighting, air-conditioning systems, fans, etc.
  • Also known as monostable switching relays or 2-pole miniature contactors
  • Require on command via a control switch for operation
  • Returns to off position when control voltage is interrupted
  • Available in different versions to meet market requirements

Read more

  • Suitable for industrial environments and controlling powerful consumers
  • Optimized coil for lower power loss and safe operation in electrical distribution boards


Product

Manufacturer Material ID -
E298-16-11
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Control voltage 1 -
- Volt
Control voltage 2 -
- Volt
Type of control voltage 1 -
UN
Type of control voltage 2 -
UN
Frequency control voltage 1 -
- Hertz
Frequency control voltage 2 -
- Hertz
Max. switching current (cos phi = 0.6) -
- Ampere
Max. incandescent lamp load -
- Watt
Max. load fluorescent lamp -
- Voltampere
Max. load fluorescent lamp (Duo circuit) -
- Voltampere
Max. load fluorescent lamp (parallel compensated) -
- Voltampere
Built-in depth -
62 Millimetre
Function -
Mechanical
Mounting method -
DIN rail
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Rated current -
16 Ampere
Recess depth -
62 Millimetre
Supply voltage -
250 Volt
Voltage type of supply voltage -
AC/DC
Width in number of modular spacings -
0.5
ABB

Availability On Request

£31.64
