75431 {B}

EA5E1500Q EZ-ARRAY 5 OPTICAL SPACING x 1500 EMITTER

Manufacturer's No: EA5E1500Q     Manufacturer: Turck Banner

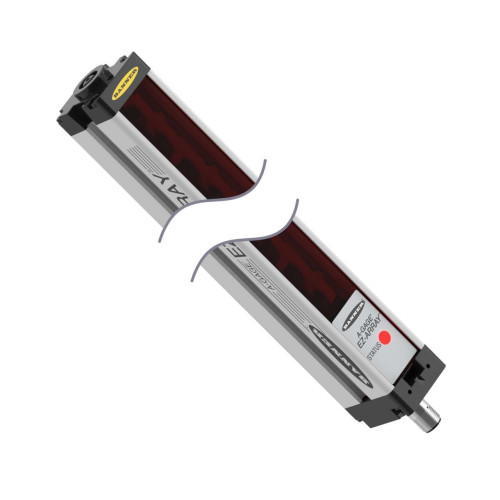

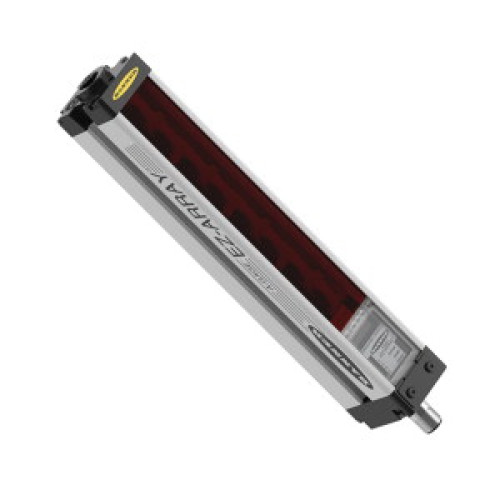

EA5E1500Q EZ-ARRAY 5 OPTICAL SPACING x 1500 EMITTER

Availability Available to order

£2,286.99
  • Measuring Light Screen
  • Emitter with operating voltage: 12-30 VDC
  • Max. range: 4m
  • Scan field: 1500mm
  • Resolution: 5mm
  • Male M12 × 1, 8-pin connector
  • Protection class: IP65
  • 2 × EZA-MBK-11 brackets included in delivery


Product

Manufacturer Material ID -
EA5E1500Q
Net Weight -
5.90kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

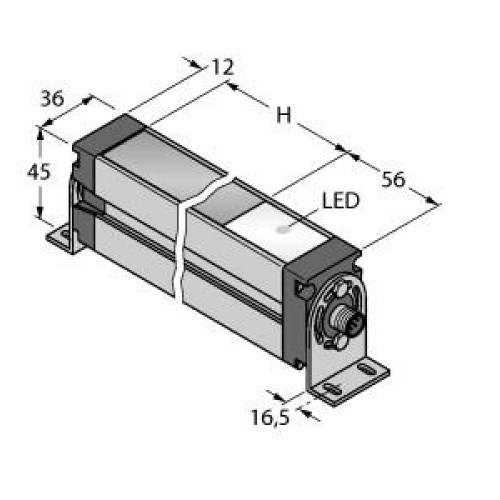

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
1578 Millimetre
Length of sensor -
45.2 Millimetre
Resolution of the light curtain -
5 Millimetre
Safety field height -
1500 Millimetre
Type of electric connection -
Connector M12
Width sensor -
36 Millimetre
Turck Banner

Availability Available to order

£2,286.99
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
