3077545

EZ-ARRAY Receiver: 1200 (47.2 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State

Manufacturer's No: EA5R1200PUXMODQ     Manufacturer: Turck Banner
EZ-ARRAY Receiver: 1200 (47.2 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485, 8-pin M12 Integral QD

Availability On Request

£1,947.19
  • Measuring Light Screen with Receiver
  • Max. range: 4 meters
  • Scan field: 1200 mm
  • Resolution: 5 mm
  • Operating voltage: 15-30 VDC
  • Protection class: IP65
  • Male M12 × 1, 8-pin connector
  • Female M12 × 1, 5-pin connector
  • 2x PNP switching output
  • 2x analog outputs: 0-10 V

Read more

  • Modbus RTU communication via RS485
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd
  • Includes 2 × EZA-MBK-11 brackets in delivery


Product

Manufacturer Material ID -
EA5R1200PUXMODQ
Net Weight -
4.95kg

Additional Product Information

Commodity Code -
90318020
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -

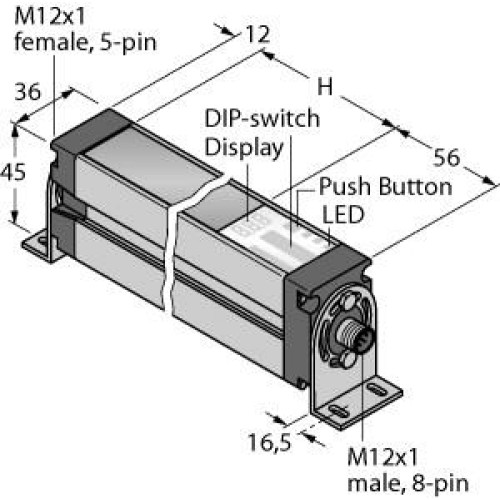

Height of sensor -
1278 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
17.9 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
1200 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£1,947.19
