3077528

EZ-ARRAY Receiver: 300 (11.8 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State P

Manufacturer's No: EA5R300PIXMODQ     Manufacturer: Turck Banner

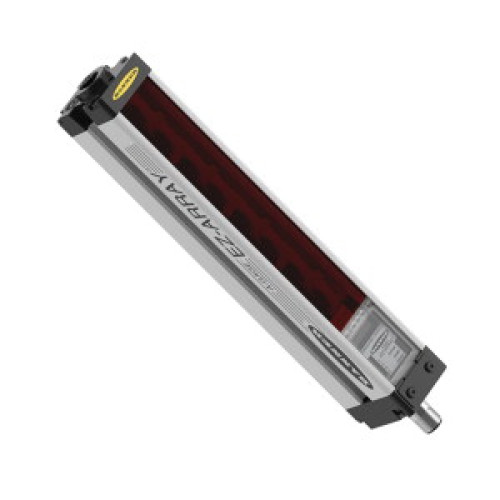

EZ-ARRAY Receiver: 300 (11.8 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4, 8-pin M12 Integral QD

Availability On Request

£910.08
  • Measuring Light Screen
  • Receiver with Male M12 × 1, 8-pin connector
  • Operating voltage: 12-30 VDC
  • Max. range: 4 meters
  • Scan field: 300 mm
  • Resolution: 5 mm
  • Protection class: IP65
  • 2x PNP switching output
  • 2x analog output: 4-20 mA
  • Modbus RTU communication via RS485

Read more

  • Female M12 × 1, 5-pin connector
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd
  • Includes 2 × EZA-MBK-11 brackets in delivery


Product

Manufacturer Material ID -
EA5R300PIXMODQ
Net Weight -
1.82kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
379 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
5 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
300 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£910.08
