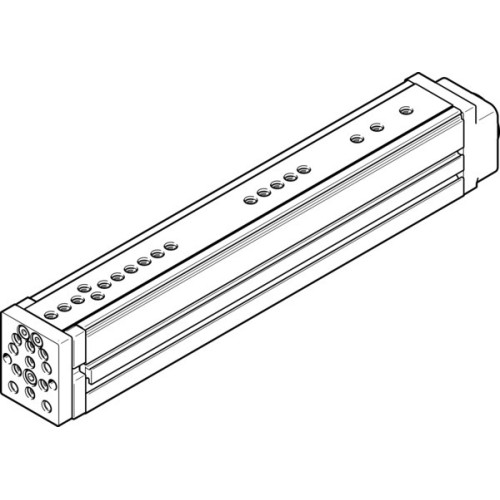

EGSL-BS-45-200-10P Mini slide

Manufacturer's No: EGSL-BS-45-200-10P     Manufacturer: Festo
EGSL-BS-45-200-10P Mini slide

Availability On Request

£1,798.90
  • Mini slide with a working stroke of 200mm and a size of 45
  • Running parallelism along Z-axis: 0.08mm, Parallelism: 0.1mm
  • Spindle diameter: 10mm, Spindle pitch: 10Y13
  • Reversing backlash theoretical: 50mim
  • Design: Electric mini slide with ball screw drive guidance
  • Motor options: Stepper motor and servo motor
  • Spindle type: Ball screw drive
  • Position detection via proximity switch
  • Max. acceleration: 25m/s², Max. speed: 1m/s
  • Repetition accuracy: ±0.015mm, Duty cycle: 100%

Read more

  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 60dBA, Degree of protection: IP40
  • Ambient temperature range: 0°C to 60°C
  • Continuous feed force: 100N, Max. drive torque: 0.415Nm
  • Max. forces: Fy: 291N, Fz: 291N, Radial force at drive shaft: 120N
  • Max. moments: Mx: 14.3Nm, My: 12.3Nm, Mz: 12.3Nm
  • Max. feed force Fx: 150N, Frictional torque independent of load: 0.08Nm
  • Reference value effective load: Horizontal: 6kg, Vertical: 6kg
  • Mass moment of inertia: JL per kg of working load: 0.0253kgm², JO: 0.0731kgm²
  • Feed constant: 10Y13, Maintenance interval: Life-time lubrication
  • Moving mass: 940g, Product weight: 2190g
  • Mounting options: Via female thread, via centring sleeve, with accessories
  • RoHS-compliant materials: Die-cast aluminum cover, painted cover, rolled steel guide rail, wrought aluminum alloy housing (anodized), wrought aluminum alloy yoke plate (anodized), rolled steel spindle nut and spindle.


Product

Manufacturer Material ID -
EGSL-BS-45-200-10P
Net Weight -
2.28kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,798.90
