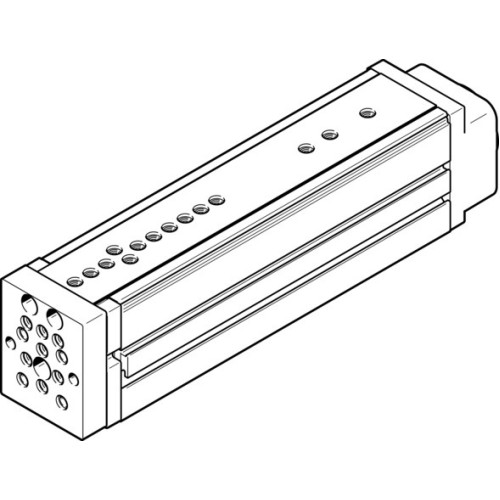

EGSL-BS-55-100-12.7P Mini slide

Manufacturer's No: EGSL-BS-55-100-12.7P     Manufacturer: Festo
EGSL-BS-55-100-12.7P Mini slide

Availability On Request

£1,572.12
  • Mini slide with a working stroke of 100mm and a size of 55
  • Running parallelism along Z-axis: 0.04mm, Parallelism: 0.05mm
  • Spindle diameter: 12.7mm, Spindle pitch: 12.7 Y13
  • Reversing backlash theoretical: 50mim
  • Design: Electric mini slide with ball screw drive and ball bearing cage guide
  • Motor types: Stepper motor and servo motor
  • Position detection via proximity switch
  • Max. acceleration: 25 m/s², Max. speed: 1 m/s
  • Repetition accuracy: ±0.015mm, Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 65 dBA, Degree of protection: IP40
  • Ambient temperature range: 0°C to 60°C
  • Continuous feed force: 200N, Max. drive torque: 1.017Nm
  • Max. forces: Fy: 1047N, Fz: 1047N, Max. moments: Mx: 33.1Nm, My: 31Nm, Mz: 31Nm
  • Max. radial force at drive shaft: 260N, Max. feed force Fx: 300N
  • Frictional torque independent of load: 0.13Nm
  • Reference value effective load: Horizontal and vertical: 10kg
  • Mass moment of inertia: JL per kg of working load: 0.0409kgm², JO: 0.1827kgm²
  • Feed constant: 12.7 Y13, Maintenance interval: Life-time lubrication
  • Moving mass: 1150g, Product weight: 2550g
  • Mounting options: Via female thread, via centring sleeve, with accessories
  • RoHS-compliant materials: Die-cast aluminum cover, painted cover, rolled steel guide rail, wrought aluminum alloy housing (anodized), wrought aluminum alloy yoke plate (anodized), rolled steel spindle nut and spindle.


Product

Manufacturer Material ID -
EGSL-BS-55-100-12.7P
Net Weight -
2.73kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,572.12
