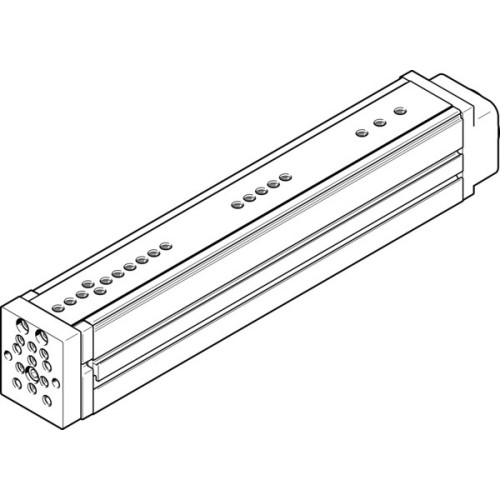

EGSL-BS-55-200-12.7P Mini slide

Manufacturer's No: EGSL-BS-55-200-12.7P     Manufacturer: Festo
EGSL-BS-55-200-12.7P Mini slide

Availability On Request

£1,950.03
  • EGSL-BS-55-200-12.7P Mini slide
  • Working stroke: 200 mm
  • Size: 55
  • Running parallelism along Z-axis: 0.08 mm
  • Parallelism: 0.1 mm
  • Reversing backlash theoretical: 50 µm
  • Spindle diameter: 12.7 mm
  • Spindle pitch: 12.7 Y13
  • Guide: Ball bearing cage guide
  • Design: Electric mini slide

Read more

  • Type of motor: Stepper motor, Servo motor
  • Spindle type: Ball screw drive
  • Position detection: Via proximity switch
  • Max. acceleration: 25 m/s²
  • Max. speed: 1 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 65 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0-60°C
  • Continuous feed force: 200 N
  • Max. drive torque: 1.017 Nm
  • Max. force Fy: 490 N
  • Max. force Fz: 490 N
  • Max. moment Mx: 24.2 Nm
  • Max. moment My: 22.6 Nm
  • Max. moment Mz: 22.6 Nm
  • Max. radial force at drive shaft: 260 N
  • Max. feed force Fx: 300 N
  • Frictional torque independent of load: 0.13 Nm
  • Reference value effective load, horizontal: 10 kg
  • Reference value effective load, vertical: 10 kg
  • Mass moment of inertia JL per kg of working load: 0.0409 kgm²
  • Mass moment of inertia JO: 0.2113 kgm²
  • Feed constant: 12.7 Y13
  • Maintenance interval: Life-time lubrication
  • Moving mass: 1490 g
  • Product weight: 3400 g
  • Type of mounting: Via female thread, Via centring sleeve, With accessories
  • Note on materials: RoHS-compliant
  • Material cover: Die-cast aluminium, Painted
  • Material guide rail: Rolled steel
  • Material housing: Wrought aluminium alloy, Anodised
  • Material yoke plate: Wrought aluminium alloy, Anodised
  • Material spindle nut: Rolled steel
  • Material spindle: Rolled steel


Product

Manufacturer Material ID -
EGSL-BS-55-200-12.7P
Net Weight -
3.43kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
