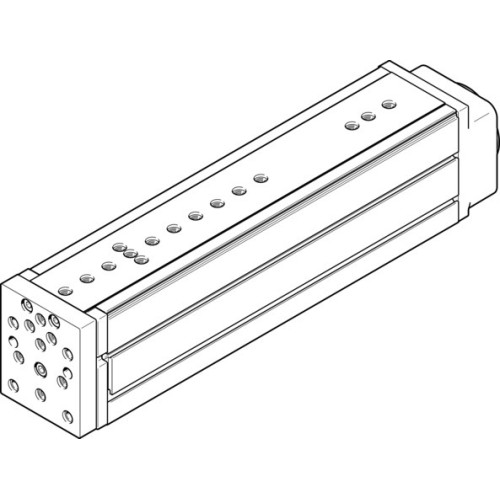

EGSL-BS-75-200-20P Mini slide

Manufacturer's No: EGSL-BS-75-200-20P     Manufacturer: Festo
EGSL-BS-75-200-20P Mini slide

Availability On Request

£2,101.21
  • Mini slide with a working stroke of 200mm and a size of 75
  • Running parallelism along Z-axis: 0.08mm, Parallelism: 0.1mm
  • Spindle diameter: 20mm, Spindle pitch: 20Y13
  • Reversing backlash theoretical: 50mim
  • Design: Electric mini slide with ball screw drive
  • Motor options: Stepper motor, Servo motor
  • Position detection via proximity switch
  • Max. acceleration: 25m/s², Max. speed: 1.3m/s
  • Repetition accuracy: ±0.015mm, Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 65dBA, Degree of protection: IP40
  • Ambient temperature range: 0°C to 60°C
  • Continuous feed force: 300N, Max. drive torque: 2.231Nm
  • Max. forces: Fy: 714N, Fz: 714N, Max. moments: Mx: 48.5Nm, My: 33.8Nm, Mz: 33.8Nm
  • Max. radial force at drive shaft: 300N, Max. feed force Fx: 450N
  • Frictional torque independent of load: 0.155Nm
  • Reference value effective load: Horizontal: 14kg, Vertical: 14kg
  • Mass moment of inertia: JL per kg of working load: 0.1013kgm², JO: 1.1945kgm²
  • Feed constant: 20Y13, Maintenance interval: Life-time lubrication
  • Moving mass: 2850g, Product weight: 6520g
  • Mounting options: Via female thread, Via centring sleeve, With accessories
  • RoHS-compliant materials: Die-cast aluminium cover, Painted cover, Rolled steel guide rail, Wrought aluminium alloy housing (Anodised), Wrought aluminium alloy yoke plate (Anodised), Rolled steel spindle nut and spindle


Product

Manufacturer Material ID -
EGSL-BS-75-200-20P
Net Weight -
6.59kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,101.21
