2CSG152424R1202

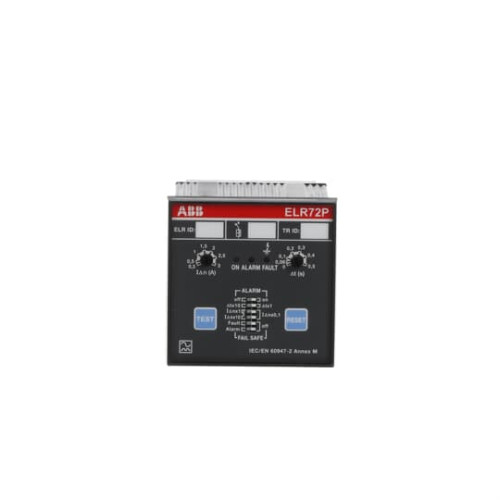

ELR72P Residual Current Monitor

Manufacturer's No: ELR72P     Manufacturer: ABB
ELR72P Residual Current Monitor

Availability Back Order

£648.88
  • Model: ELR72P Residual Current Monitor
  • Function: Monitors and protects low voltage distribution network
  • Technology: Uses toroidal transformer for monitoring
  • Protection: Works in combination with MCBs and MCCBs
  • Compliance: Meets protection standard 60947-2 Annex M
  • Operational Time: Manufacturer guarantees cumulative operational time


Product

Manufacturer Material ID -
ELR72P
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Rated voltage -
110 Volt
Depth -
88 Millimetre
Function -
For AC-current system
Height -
72 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30000 Milliampere
Width -
72 Millimetre
ABB

Availability Back Order

£648.88
