2CSG452424R1202

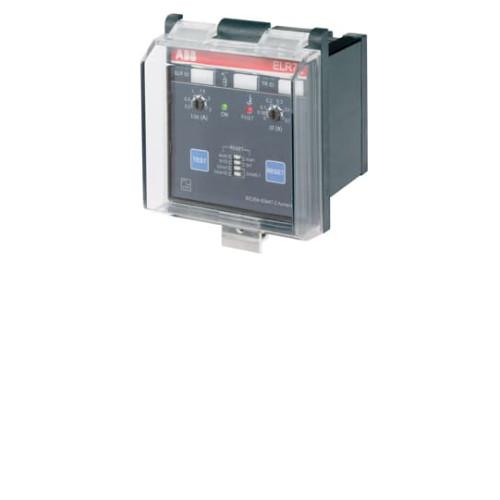

ELR72V24P Residual Current Monitor

Manufacturer's No: ELR72V24P     Manufacturer: ABB
ELR72V24P Residual Current Monitor

Availability On Request

£653.27
  • Model: ELR72V24P
  • Function: Residual Current Monitor
  • Monitors and protects low voltage distribution network
  • Utilizes toroidal transformer for monitoring
  • Achieves protection in combination with MCBs and MCCBs
  • Front panel compliant with protection standard 60947-2 Annex M
  • Offers cumulative operational time guarantee by the manufacturer


Product

Manufacturer Material ID -
ELR72V24P
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Rated voltage -
24 Volt
Depth -
88 Millimetre
Function -
For mixed system
Height -
72 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30000 Milliampere
Width -
72 Millimetre
