1SKT250901C0001

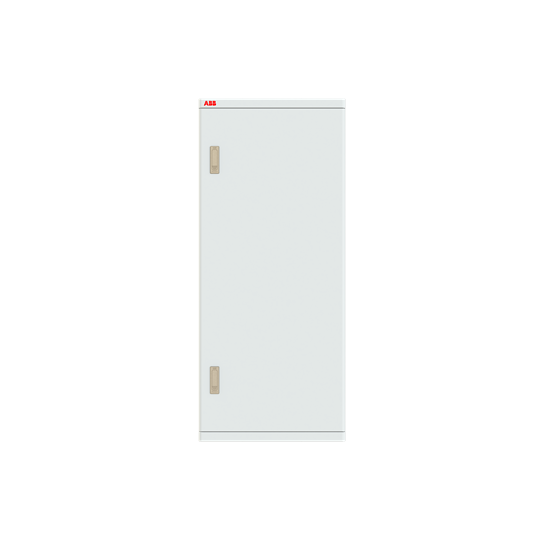

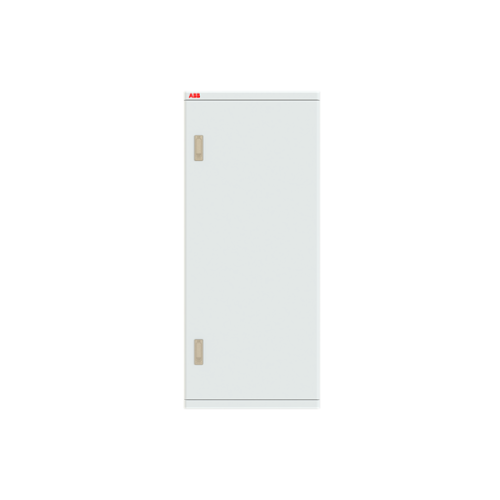

EPP-R5090 Protecta plus DB, Rows: 5, 1050 mm x 450 mm x 130 mm, Isolated (Class II), IP43

Manufacturer's No: EPP-R5090     Manufacturer: ABB
EPP-R5090 Protecta plus DB, Rows: 5, 1050 mm x 450 mm x 130 mm, Isolated (Class II), IP43

Availability Available to order

£278.78
  • Product: EPP-R5090 Protecta Plus DB
  • Rows: 5
  • Dimensions: 1050 mm x 450 mm x 130 mm
  • Isolation: Class II
  • IP Rating: IP43
  • Row Type: 5 row 90 mod


Product

Manufacturer Material ID -
EPP-R5090
Net Weight -

Additional Product Information

Commodity Code -
85.38.21
Country of Origin -
EG
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
Closed
Degree of protection (IP rating) -
IP43
Depth -
130 Millimetre
Extension possible -
Height -
1050 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK07
Internal depth -
129 Millimetre
Mounting method -
Surface mounted
Nominal current (In) -
250 Ampere
Number of modules -
90
Number of openings for flange plates -
2
Number of rows -
5
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
130 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Compartment door
Width -
450 Millimetre
With lock -
ABB

Availability Available to order

£278.78
