1SAE661111R0140

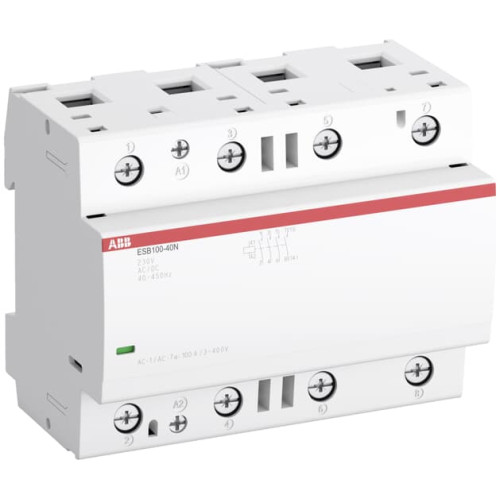

ESB100-40N-01 Installation Contactors (NO) 100 A - 4 NO - 0 NC - 24 V - Control Circuit 400 Hz

Manufacturer's No: ESB100-40N-01     Manufacturer: ABB
ESB100-40N-01 Installation Contactors (NO) 100 A - 4 NO - 0 NC - 24 V - Control Circuit 400 Hz

Availability On Request

£490.03
  • Model: ESB100-40N-01 Installation Contactors (NO)
  • Current Rating: 100 A
  • Contact Configuration: 4 NO (Normally Open), 0 NC (Normally Closed)
  • Control Voltage: 24 V
  • Control Circuit Frequency: 400 Hz
  • Suitable for single and three-phase loads
  • Can be operated by AC or DC
  • Designed for household and industrial use
  • Hum-free operation
  • Low power consumption

Read more

  • Integrated overvoltage protection
  • Various contact combinations and accessories available


Product

Manufacturer Material ID -
ESB100-40N-01
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85365080
UNSPSC -
39122330

Technical Specification

Utility category -
7
Additional equipment possible -
Degree of protection (IP rating) -
IP20
Hum-free -
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
4
Rated excitation voltage -
24 Volt
Rated operating voltage -
220 Volt
Rated operation current -
100 Ampere
Recess depth -
58 Millimetre
Utilization category according to EN IEC 60947-4-1 -
AC-1
Voltage type (excitation voltage) -
AC/DC
Voltage type (operating voltage) -
AC/DC
Width in number of modular spacings -
6
