2CSF202001R3800

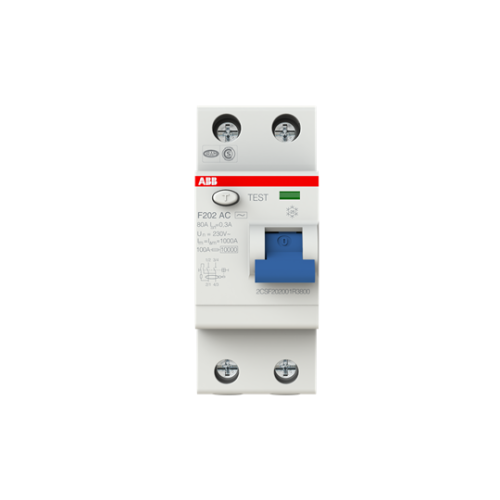

F202 AC-80/0.3 Residual Current Circuit Breaker 2P Type AC 300 mA

Manufacturer's No: F202AC-80/0.3     Manufacturer: ABB
F202 AC-80/0.3 Residual Current Circuit Breaker 2P Type AC 300 mA

Availability On Request

£155.95
  • Model: F202 AC-80/0.3 Residual Current Circuit Breaker 2P Type AC
  • Rated Residual Current: 300 mA
  • Provides protection against fault current to earth
  • Offers standard instantaneous and selective AC and A types
  • Configurations available for special applications


Product

Manufacturer Material ID -
F202AC-80/0.3
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Built-in depth -
69 Millimetre
Degree of protection (IP) -
IP2X
Short-circuit breaking capacity (Icw) -
1 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
35 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
Other
Leakage current type -
AC
Mounting method -
DIN rail
Number of poles -
2
Pollution degree -
2
Rated current -
80 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Surge current capacity -
0.25 kiloampere
Width in number of modular spacings -
2
With interlocking device -
ABB

Availability On Request

£155.95
