2CSF202592R3250

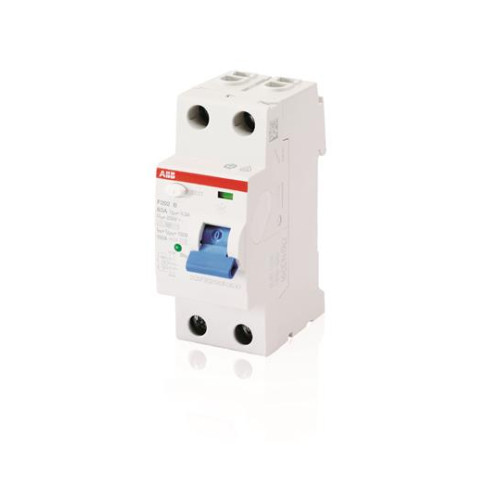

F202 B-25/0,3 Residual Current Circuit Breaker

Manufacturer's No: F202B-25/0.3     Manufacturer: ABB
F202 B-25/0,3 Residual Current Circuit Breaker

Availability Back Order

POA
  • F202 B-25/0,3 Residual Current Circuit Breaker
  • Part of the RCCBs F200 series
  • Provides protection against fault current to earth
  • Offers standard instantaneous and selective AC and A types
  • Configurations available for special applications
  • Suitable for protecting against smooth d.c. earth fault currents


Product

Manufacturer Material ID -
F202B-25/0.3
Net Weight -
0.22kg

Additional Product Information

Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Mounting method -
DIN rail
Built-in depth -
69 Millimetre
Rated current -
25 Ampere
Rated voltage -
230 Volt
Number of poles -
2
Rated fault current -
0.3 Milliampere
Leakage current type -
B
Short-circuit breaking capacity (Icw) -
1 kiloampere
Surge current capacity -
3 kiloampere
Width in number of modular spacings -
2
Short-time delayed tripping -
Frequency -
50/60 Hz
Degree of protection (IP) -
IP2X
Additional equipment possible -
ABB

Availability Back Order

POA
