2CSF202325R1630

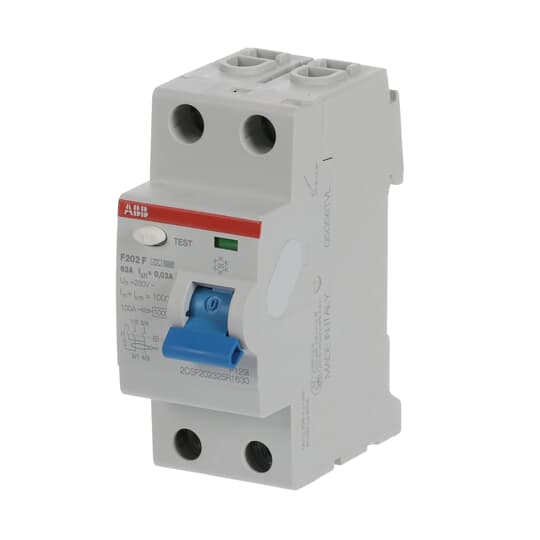

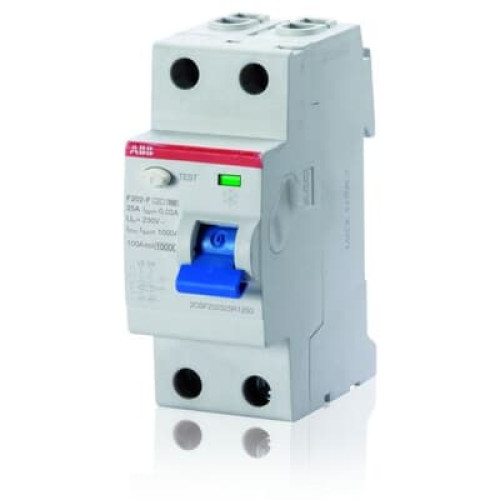

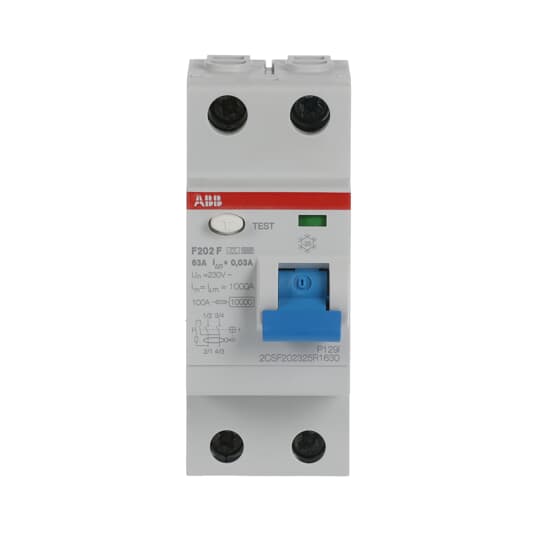

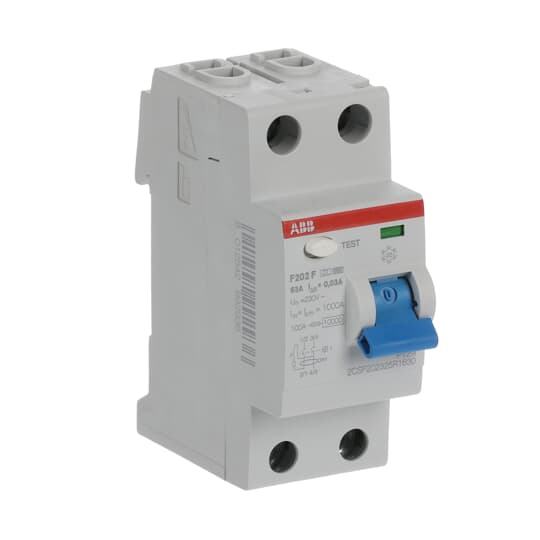

F202 F-63/0.03 Residual Current Circuit Breaker 2P Type F 30 mA

Manufacturer's No: F202F63003     Manufacturer: ABB
F202 F-63/0.03 Residual Current Circuit Breaker 2P Type F 30 mA

Availability Back Order

£786.72
  • Product: F202 F-63/0.03 Residual Current Circuit Breaker
  • Type: 2P Type F
  • Sensitivity: 30 mA
  • Series: F200
  • Protection against fault current to earth
  • Detects sinusoidal AC currents and pulsating DC currents


Product

Manufacturer Material ID -
F202F63003
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Short-circuit breaking capacity (Icw) -
1 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
Other
Leakage current type -
F
Mounting method -
DIN rail
Number of poles -
2
Pollution degree -
2
Rated current -
63 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Short-time delayed tripping -
Surge current capacity -
4 kiloampere
Width in number of modular spacings -
2
With interlocking device -
ABB

Availability Back Order

£786.72
