2CSF204823R4950

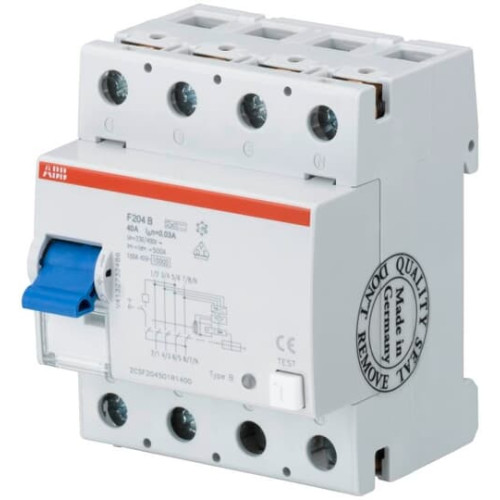

F204 B S-125/0.5-L Residual Current Circuit Breaker 4P Type B 500 mA

Manufacturer's No: F204 B S-125/0,5     Manufacturer: ABB
F204 B S-125/0.5-L Residual Current Circuit Breaker 4P Type B 500 mA

Availability Back Order

£6,433.75
  • Model: F204 B S-125/0.5-L Residual Current Circuit Breaker 4P Type B 500 mA
  • Provides protection against fault current to earth
  • Suitable for protecting against smooth d.c. earth fault currents
  • Ideal for installations with neutral on the left


Product

Manufacturer Material ID -
F204 B S-125/0,5
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Built-in depth -
69 Millimetre
Degree of protection (IP) -
IP2X
Short-circuit breaking capacity (Icw) -
1 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
50 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
50 Hz
Leakage current type -
B
Mounting method -
DIN rail
Number of poles -
4
Pollution degree -
2
Power loss -
35.8 Watt
Rated current -
125 Ampere
Rated fault current -
0.5 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
400 Volt
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Selective protection -
Short-time delayed tripping -
Surge current capacity -
5 kiloampere
Width in number of modular spacings -
4
With interlocking device -
ABB

Availability Back Order

£6,433.75
