6870662

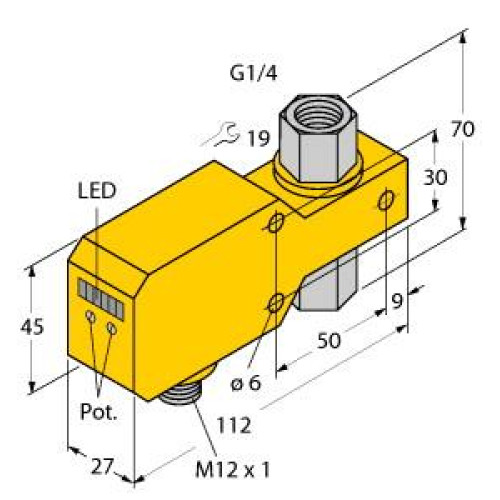

Flow Monitoring, Inline Sensor with Integrated Processor

Manufacturer's No: FCI-D06CTP-LIX-H1141     Manufacturer: Turck Banner
Flow Monitoring, Inline Sensor with Integrated Processor

Availability On Request

£773.06
  • Flow Monitoring Inline Sensor with Integrated Processor
  • Operating Voltage: 21.6 - 26.4 VDC
  • Flow Sensor for liquid media using Calorimetric principle
  • Adjustable via potentiometer with LED band
  • Operating Range: 0.02 - 3 l/min
  • Sensor Material: Ceramics/plastic with FKM seal
  • DC 3-wire, 4 - 20 mA analog output
  • Connector Device: M12 x 1


Product

Manufacturer Material ID -
FCI-D06CTP-LIX-H1141
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
0 Degrees celsius
Compressive strength measuring head -
5 Pressure
Measurement principle -
Thermal
Type of electric connection -
Plug-in connection
Type of process connection -
Thread connection
Turck Banner

Availability On Request

£773.06
