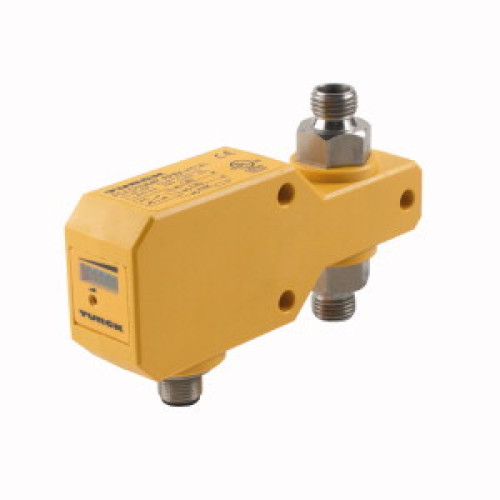

Flow Monitoring, Inline Sensor with Integrated Processor

Manufacturer's No: FCI-D10A4P-ARX-H1140     Manufacturer: Turck Banner
Flow Monitoring, Inline Sensor with Integrated Processor

Availability On Request

£492.78
  • Flow Monitoring Inline Sensor with Integrated Processor
  • Operating Voltage: 21.6-26.4 VDC
  • Flow Sensor for liquid media using Calorimetric principle
  • Adjustment via potentiometer with LED band
  • Operating Range: 0.1-6 l/min
  • DC 4-wire
  • NO contact relay output
  • Plug-in device with M12 x 1 interface


Product

Manufacturer Material ID -
FCI-D10A4P-ARX-H1140
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
0 Degrees celsius
Compressive strength measuring head -
20 Pressure
Measurement principle -
Thermal
Type of electric connection -
Plug-in connection
Type of process connection -
Thread connection
Turck Banner

Availability On Request

£492.78
