6870656

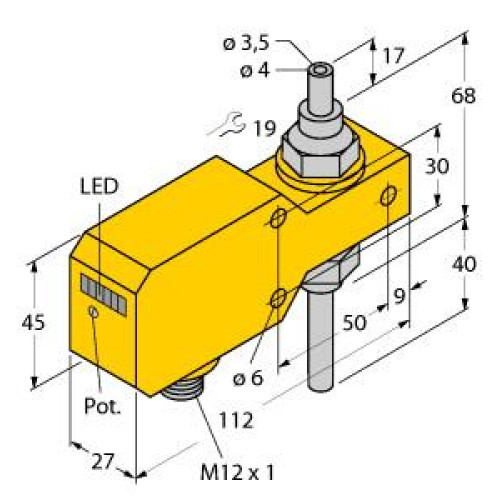

Flow Monitoring, Inline Sensor with Integrated Processor

Manufacturer's No: FCI-TCD04A4P-AP8X-H1141     Manufacturer: Turck Banner
Flow Monitoring, Inline Sensor with Integrated Processor

Availability On Request

£616.83
  • Flow Monitoring Inline Sensor with Integrated Processor
  • Operating Voltage: 19.2-28.8 VDC
  • Flow Sensor for Liquid Media using Calorimetric Principle
  • Adjustment via Potentiometer with LED Band
  • Operating Range: 1-200 ml/min
  • Mechanical Connection: Barrel, 4 mm
  • DC 3-Wire, NO Contact, PNP Output
  • Connector Device: M12 x 1


Product

Manufacturer Material ID -
FCI-TCD04A4P-AP8X-H1141
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
0 Degrees celsius
Compressive strength measuring head -
1 Pressure
Measurement principle -
Thermal
Type of electric connection -
Plug-in connection
Type of process connection -
Pipe connection
Turck Banner

Availability On Request

£616.83
