6870783

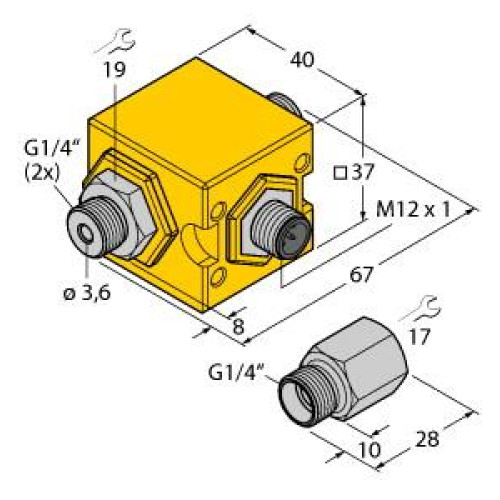

Flow Monitoring, Compact Inline Flow Sensors of the FCIC Series, Analog Output 4

Manufacturer's No: FCIC-G1/4A4P-LIL-H1141/1.0     Manufacturer: Turck Banner
Flow Monitoring, Compact Inline Flow Sensors of the FCIC Series, Analog Output 4

Availability On Request

£519.04
  • Flow Monitoring with FCIC Series Compact Inline Flow Sensors
  • Analog Output: 4-20 mA Linearized for Water
  • Operating Voltage: 21.6-26.4 VDC
  • Inline sensor using Thermodynamic operating principle
  • Operating Range: 0.05-1.0 l/min
  • Initial Value: 4 mA at 0 l/min, End Value: 20 mA at 1 l/min
  • Load Resistance: 200-500 Ohm
  • No alignment required, ready for use
  • Compact design with included adapter


Product

Manufacturer Material ID -
FCIC-G1/4A4P-LIL-H1141/1.0
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature for evaluation electronic -
0 Degrees celsius
Compressive strength measuring head -
10 Pressure
Measurement principle -
Thermal
Type of electric connection -
Plug-in connection
Type of process connection -
Thread connection
Turck Banner

Availability On Request

£519.04
