6870703

Flow Monitoring, Immersion Sensor with Integrated Processor

Manufacturer's No: FCS-K20-LIX     Manufacturer: Turck Banner

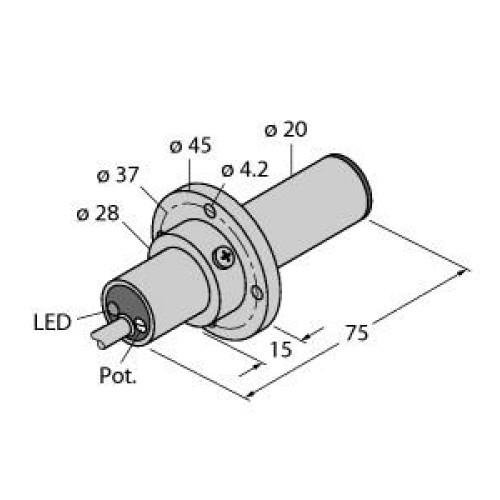

Flow Monitoring, Immersion Sensor with Integrated Processor

Availability On Request

£240.45
  • Flow monitoring immersion sensor with integrated processor
  • Operating voltage: 19.2 to 28.8 VDC
  • Immersion sensor with 2m cable length
  • Flow sensor designed for gaseous media using calorimetric principle
  • Adjustment via potentiometer
  • Mounting flange made of plastic included
  • LED "power on" indication
  • Plastic sensor housing
  • DC 3-wire connection
  • Analog output: 4 to 20 mA


Product

Manufacturer Material ID -
FCS-K20-LIX
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
90261021000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Adjustable setting value for flow for gases -
0.5 Metre per second
Ambient temperature for evaluation electronic -
-20 Degrees celsius
Compressive strength measuring head -
1 Pressure
Measurement principle -
Thermal
Type of electric connection -
Other
Type of process connection -
Flange connector
Turck Banner

Availability On Request

£240.45
