2CSF204006R1630

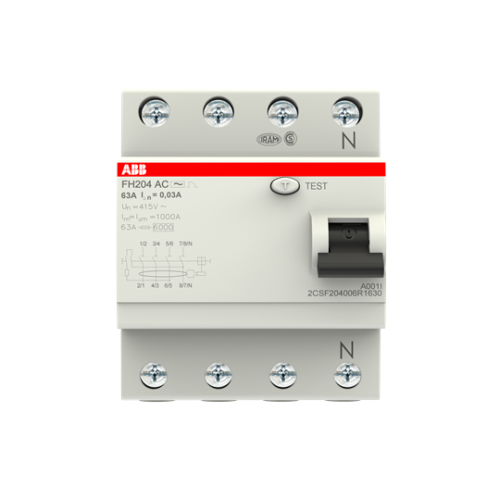

FH204 AC-63/0.03 Residual Current Circuit Breaker 4P Type AC 30 mA

Manufacturer's No: FH204AC-63/0.03     Manufacturer: ABB
FH204 AC-63/0.03 Residual Current Circuit Breaker 4P Type AC 30 mA

Availability On Request

£211.83
  • FH204 AC-63/0.03 Residual Current Circuit Breaker
  • 4P Type AC
  • Rated residual current: 30 mA
  • Provides protection against fault current to earth
  • Suitable for domestic applications
  • Part of the RCCBs FH200 series
  • Offers standard instantaneous AC and A types


Product

Manufacturer Material ID -
FH204AC-63/0.03
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-5 Degrees celsius
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Degree of protection (IP rating) -
IP2X
Frequency -
50 Hz
Leakage current type -
AC
Mounting method -
DIN rail
Number of poles -
4
Rated current -
63 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Short-circuit breaking capacity (Icw) -
1 kiloampere
Surge current capacity -
0.25 kiloampere
Width in number of modular spacings -
4
With interlocking device -
ABB

Availability On Request

£211.83
