50080724

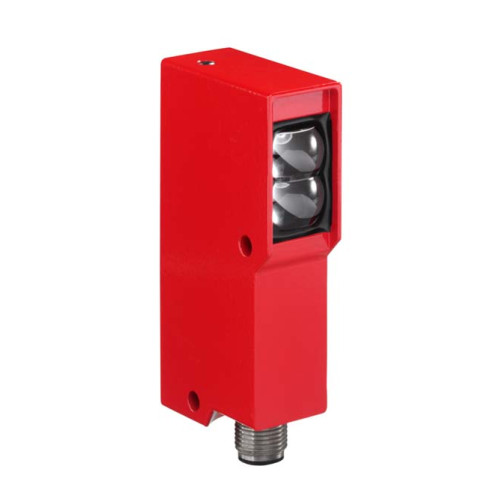

The Diffuse sensor with background suppression from . Operating range limit: 0,03 ... 0,3 m; Light source: LED, Red; Switching fre

Manufacturer's No: FRK 92/3-300 L Ex     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit: 0,03 ... 0,3 m; Light source: LED, Red; Switching frequency: 60 Hz; Supply voltage: 5,5 ... 13 V, DC; Interface: NAMUR; C

Availability Back Order

£713.00
  • Special version: Ex-protected
  • Operating range limit: 0.03m to 0.3m
  • Light source: LED, Red
  • Supply voltage: 5.5V to 13V DC
  • Switching frequency: 60 Hz
  • Interface: NAMUR
  • Connection: Connector, M12, Metal, 4-pin
  • Design: Cubic housing
  • Dimensions: 20mm x 80mm x 42.2mm
  • Housing material: Metal

Read more

  • Ambient temperature during operation: -20°C to 50°C
  • Ex device category: 2
  • Degree of protection: IP67

Accessories

Others



Product

Manufacturer Material ID -
FRK 92/3-300 L Ex
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Adjustment range -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Time of reaction -
- Millisecond
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
Material of cable sheath -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Sensing mode -
UN
Rated switching distance -
- Millimetre
Material housing -
Metal
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 2D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Height of sensor -
80 Millimetre
Housing material -
Metal
Laser protection class -
None
Length of sensor -
42.2 Millimetre
Material of optical surface -
Glass
Max. output current at protected output -
0 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operating distance -
30 Millimetre
Operation agent-safety class -
Safety class 2
Rated control supply voltage at DC -
5.5 Volt
Reaction time -
0 Millisecond
Switching frequency -
60 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
Other
Voltage type -
DC
Wavelength of the sensor -
0 Nanometre
Width sensor -
20 Millimetre
Leuze

Availability Back Order

£713.00
