2CCL562110E1255

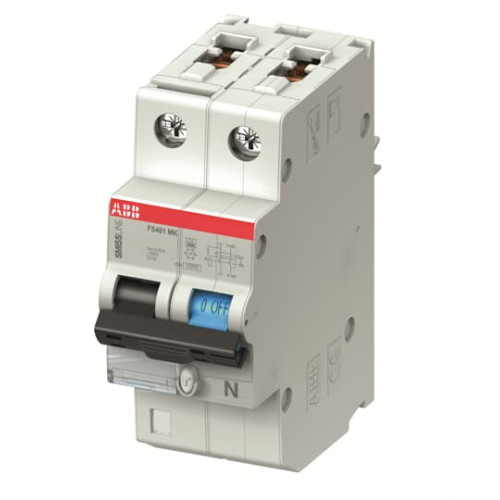

FS401M-B25/0.03 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: FS401M-B25/0.03     Manufacturer: ABB
FS401M-B25/0.03 Residual Current Circuit Breaker with Overcurrent Protection

Availability Back Order

£192.15
  • Model: FS401M-B25/0.03
  • Type: Residual Current Circuit Breaker with Overcurrent Protection
  • Pluggable design for SMISSLINE TP System
  • Standards: IEC/EN/DIN EN 61009-1, EN/DIN EN 61009-2-1
  • Rated Breaking Capacity: 10kA
  • Tripping Characteristic: B
  • Rated Current: 25A
  • Rated Sensitivity: 0.03mA
  • Rated Voltage: 240VAC


Product

Manufacturer Material ID -
FS401M-B25/0.03
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
91 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Connectable conductor cross section solid-core -
0 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
4.4 Watt
Rated current -
25 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
15 kiloampere
Rated voltage -
240 Volt
Recess depth -
91 Millimetre
Surge current capacity -
0.25 kiloampere
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
2
With interlocking device -
ABB

Availability Back Order

£192.15
