50127903

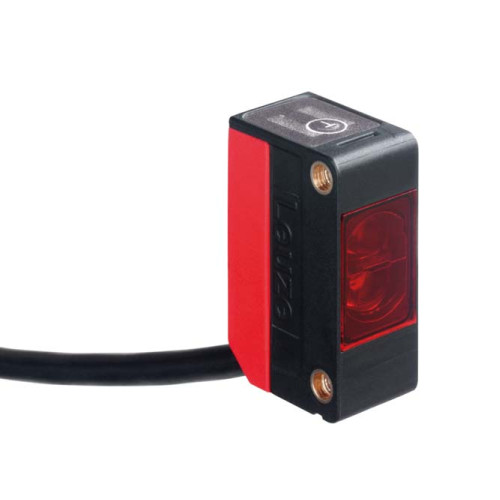

The Energetic diffuse sensor from . Operating range limit, white 90%: 0,001 ... 0,28 m; Light source: LED, Infrared; Switching fre

Manufacturer's No: FT5I.3/2N     Manufacturer: Leuze
The Energetic diffuse sensor from . Operating range limit, white 90%: 0,001 ... 0,28 m; Light source: LED, Infrared; Switching frequency: 500 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching o

Availability Back Order

£98.00
  • Operating range limit: 0.001m to 0.28m
  • Light source: LED, Infrared
  • Supply voltage: 10V to 30V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, NPN, Light switching
  • Switching output 2: Transistor, NPN, Dark switching
  • Switching frequency: 500 Hz
  • Connection: Cable, 2000mm, 4-wire
  • Design: Cubic housing
  • Dimensions: 14mm x 32.5mm x 20.2mm

Read more

  • Housing material: Plastic
  • Operational controls: Teach button
  • Ambient temperature during operation: -40°C to 60°C
  • Degree of protection: IP67

Accessories

Follow-up article



Product

Manufacturer Material ID -
FT5I.3/2N
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Laser protection class -
UN
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Operating distance -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
1 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
32.5 Millimetre
Housing material -
Plastic
Length of sensor -
20.2 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Setting procedure -
Teach-In
Switching frequency -
500 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
NPN
Voltage type -
DC
Wavelength of the sensor -
850 Nanometre
Width sensor -
14 Millimetre
