6604221 {T}

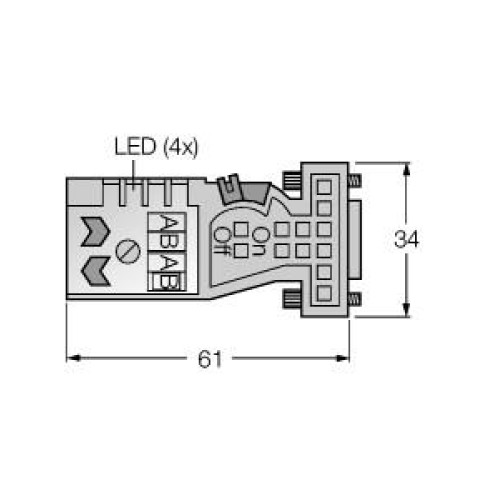

Field-Wireable Connector, Sub-D Connector, Male Connector, Straight

Manufacturer's No: FW-D9TLEDKU9XX-G-FC-ME-SH-8.5     Manufacturer: Turck Banner
Field-Wireable Connector, Sub-D Connector, Male Connector, Straight

Availability Available to order

£74.79
  • Field-wireable Sub-D male connector
  • Designed for PROFIBUS-DP applications
  • Integrated controller supports clock rates up to 12 Mbps
  • Integrated LEDs for bus cable functions
  • Activatable terminating resistor included
  • Shieldable metal housing with 180° cable outlet
  • IDC quick connection for easy installation
  • 9-pin connector suitable for cable diameter 6.0 to 8.0 mm
  • UL approved


Product

Manufacturer Material ID -
FW-D9TLEDKU9XX-G-FC-ME-SH-8.5
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
TH
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP), mounted -
IP20
Diameter connector -
8 Millimetre
Housing material -
Zinc
Material of contact surface -
Gold
Pollution degree -
1
Rated current In -
4 Ampere
Rated voltage -
12 Volt
Type of electric connection -
Insulation displacement connection
Type of housing -
Straight
