6604218

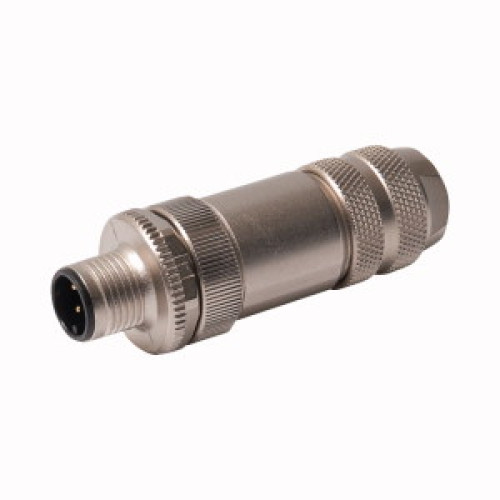

Field-Wireable Connector, Male Connector M12 × 1, Straight

Manufacturer's No: FW-M12ST5D-G-SB-ME-SH-8     Manufacturer: Turck Banner
Field-Wireable Connector, Male Connector M12 × 1, Straight

Availability On Request

£28.56
  • Field-wireable male connector M12 × 1 for Ethernet applications
  • Voltage rating: 250 V
  • Shielding via iris spring connection
  • D-coding with metal housing
  • Screw-clamp terminal for secure connection
  • 4-pin configuration
  • Cable feedthrough: 5.0 to 8.0 mm
  • UL approved


Product

Manufacturer Material ID -
FW-M12ST5D-G-SB-ME-SH-8
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-40 Degrees celsius
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Contact type -
Pin
Degree of protection (IP), mounted -
IP67
Diameter connector -
8 Millimetre
Housing material -
Zinc
Material of contact surface -
Gold
Rated current In -
4 Ampere
Rated voltage -
250 Volt
Type of electric connection -
Other
Type of housing -
Straight
Turck Banner

Availability On Request

£28.56
