1SBL411025R8411

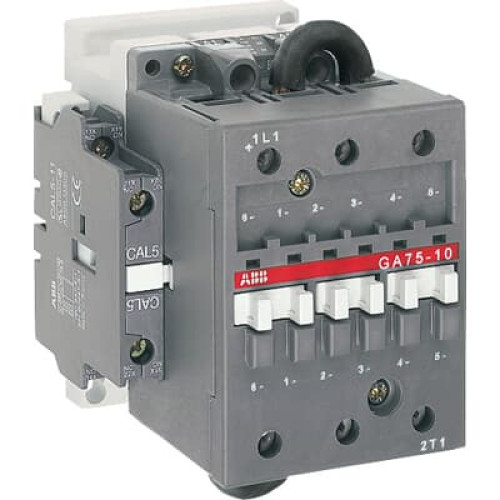

GA75-10-11 110V 50Hz / 110-120V 60Hz Contactor

Manufacturer's No: GA75-10-11     Manufacturer: ABB
GA75-10-11 110V 50Hz / 110-120V 60Hz Contactor

Availability On Request

£706.21
GA75 contactors are designed for DC circuit switching. Arc suppression is more difficult in DC than in AC. To choose a contactor, it is necessary to know the current and voltage to be broken as well as the L/R time constant of the power circuit to be controlled. GA75 contactors are of the block type design. - Main poles: the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking. The three contactor paths are arranged in series via two supplied and fitted insulated connections (25 mm²). The GA75 are "single-pole" devices for which the connection polarities indicated next to the connection terminals must be respected. Furthermore, they are marked 1L1 for the positive terminal and 2T1 for the negative terminal. - Auxiliary contact: 1 CAL 5-11 side-mounted add-on auxiliary contact block (GA75-10-11 types) - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available


Product

Manufacturer Material ID -
GA75-10-11
Net Weight -
1.26kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at DC-3 / DC-5 at 440 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
0 Volt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Type of electrical connection of main circuit -
Screw connection
Rated operation current Ie at DC-3 / DC-5 at 440 V -
85 Ampere
Voltage type for actuating -
AC
ABB

Availability On Request

£706.21
