1SFL597025R7011

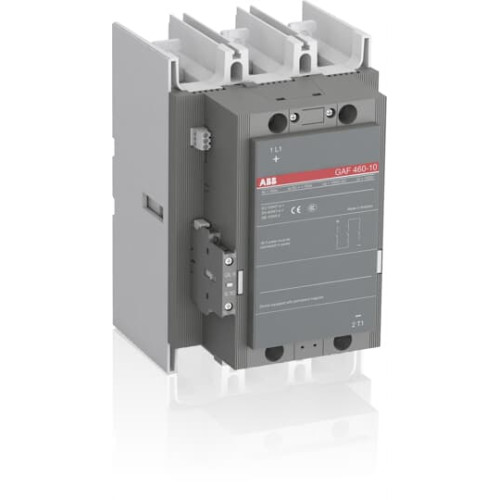

GAF460-10-11 100-250V 50/60Hz / 100-250V DC Contactor

Manufacturer's No: GAF460-10-11 100-2     Manufacturer: ABB
GAF460-10-11 100-250V 50/60Hz / 100-250V DC Contactor

Availability Back Order

£2,476.47
A 3-pole Contactor suitable for DC-1 applications where all three poles must be connected in series in a 1-pole configuration up to max 1000 VDC. Operated with wide control voltage range 100-250 V, AC/DC


Product

Manufacturer Material ID -
GAF460-10-11 100-2
Net Weight -
10.90kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at DC-3 / DC-5 at 440 V -
- Kilowatt
Rated operation current Ie at DC-3 / DC-5 at 440 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
216 Millimetre
Height -
278 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
1
Number of normally closed contacts as main contact -
0
Operating voltage at DC -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Type of electrical connection of main circuit -
Connection rail
Voltage type for actuating -
AC/DC
Width -
186 Millimetre
ABB

Availability Back Order

£2,476.47
