GJH1213001R0404

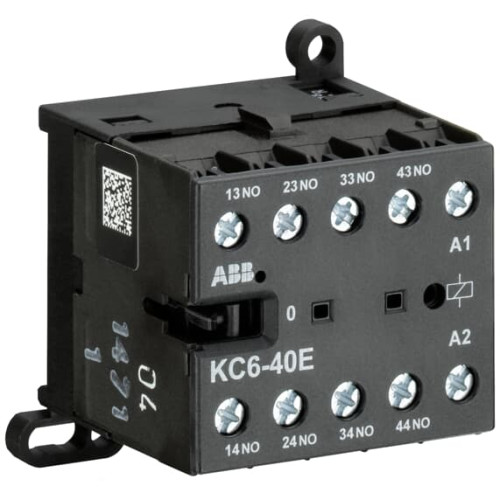

KC6-40E-04 Mini Contactor Relay 110-125VDC

Manufacturer's No: GJH1213001R0404     Manufacturer: ABB
KC6-40E-04 Mini Contactor Relay 110-125VDC

Availability Back Order

£31.57
  • Model: KC6-40E-04 Mini Contactor Relay
  • Voltage: 110-125VDC
  • Configuration: 4 pole contactor relay with screw terminals
  • Ideal for applications requiring reliability in limited space
  • Suitable for residential, commercial, and industrial use
  • Switching capacity: up to 3A / 400V (AC-15)
  • Noiseless and hum-free coil
  • Includes switch position indication


Product

Manufacturer Material ID -
GJH1213001R0404
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
110 Volt
Connection type auxiliary circuit -
Screw connection
Depth -
46.5 Millimetre
Height -
57.5 Millimetre
Mounting method -
DIN rail
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally closed contact, delayed switching -
0
Number of auxiliary contacts as normally open contact -
4
Number of auxiliary contacts as normally open contact, leading -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
250 Volt
Rated control supply voltage at DC -
110 Volt
Rated operation current -
4 Ampere
Rated operation current Ie, 400 V -
3 Ampere
Rated switch current -
4 Ampere
Voltage type (operating voltage) -
DC
Voltage type for actuating -
DC
Width -
52.5 Millimetre
