2CDG510009R0011

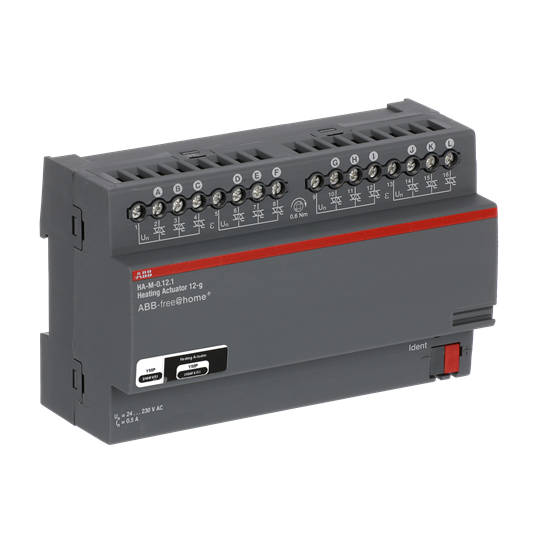

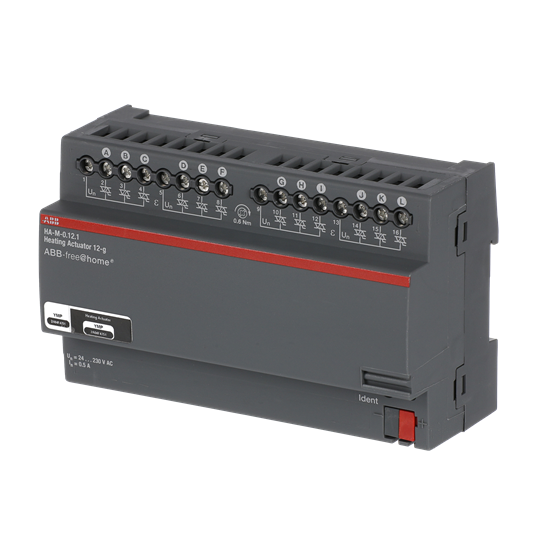

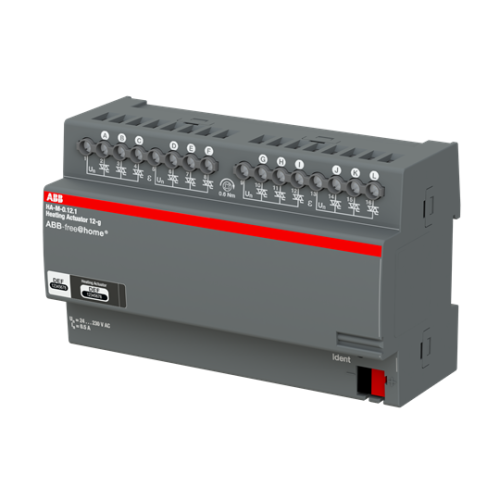

HA-M-0.12.1 Heating Actuator, 12-fold, 230 V, MDRC

Manufacturer's No: HA-M-0.12.1     Manufacturer: ABB
HA-M-0.12.1 Heating Actuator, 12-fold, 230 V, MDRC

Availability On Request

£344.22
  • HA-M-0.12.1 Heating Actuator
  • 12-fold, 230 V
  • MDRC
  • Designed for controlling thermoelectric actuating drives in heating/cooling systems
  • Outputs protected against short-circuit and overload
  • Bus connection via enclosed terminal block


Product

Manufacturer Material ID -
HA-M-0.12.1
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Max. output current -
0.16 Ampere
Max. switching current (resistive load) -
0.75 Ampere
Number of binary inputs -
0
Degree of protection (IP) -
IP20
Bus system Powernet -
Bus connection included -
Bus system LON -
Bus system KNX radio -
Correcting variable switching -
Degree of protection (IP rating) -
IP20
Maximum output current -
0.16 Ampere
Mounting method -
DRA (DIN-rail adapter)
Number of digital inputs -
0
Number of outputs -
12
Other bus systems -
Other
Switching voltage -
230 Volt
Width in number of modular spacings -
8
ABB

Availability On Request

£344.22
