2CKA006200A0133

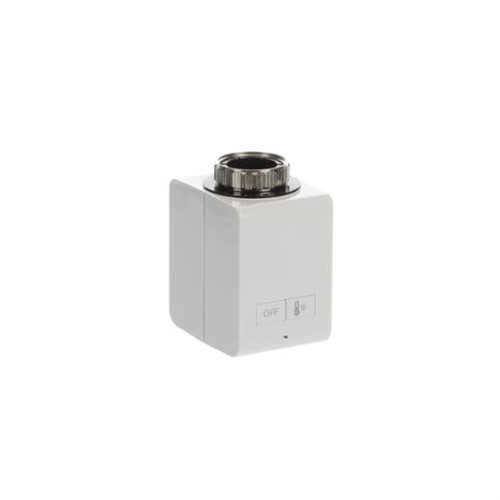

HA-S-1-WL WL-Rad. Thermostat, Basic

Manufacturer's No: HA-S-1-WL     Manufacturer: ABB
HA-S-1-WL WL-Rad. Thermostat, Basic

Availability Back Order

POA
  • HA-S-1-WL WL-Rad. Thermostat for water-bearing heaters
  • Integrated temperature sensor, controller, and actuating drive
  • Local operation for comfort mode and Off switch
  • Wireless communication with free@home system
  • Setpoint adjustment via free@home app or extension unit (e.g. RTC-F-1-WL)
  • Window open detection with 6222/1 AP-xx-WL
  • Lime protection and frost protection functions
  • Noiseless operation
  • Installation with sleeve nut M 30 x 1.5
  • Compatible with popular valve bases (e.g. Braukmann, Heimeier, Honeywell, Junkers, MNG)

Read more

  • Adapters included for Danfoss RAV, Danfoss RA, and Danfoss RAVL valves
  • Additional valve adapters available separately
  • Battery type: 2 x AA (included)


Product

Manufacturer Material ID -
HA-S-1-WL
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
90321020
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Number of outputs -
-
Max. output current -
- Ampere
Max. switching current (resistive load) -
- Ampere
Width in number of modular spacings -
-
Number of binary inputs -
-
Switching voltage -
- Volt
Mounting method -
Other
Degree of protection (IP) -
IP20
Other bus systems -
None
Degree of protection (IP rating) -
IP20
Correcting variable consistent -
Valve protection function -
Radio frequent bidirectional -
