1SAT123000R1011

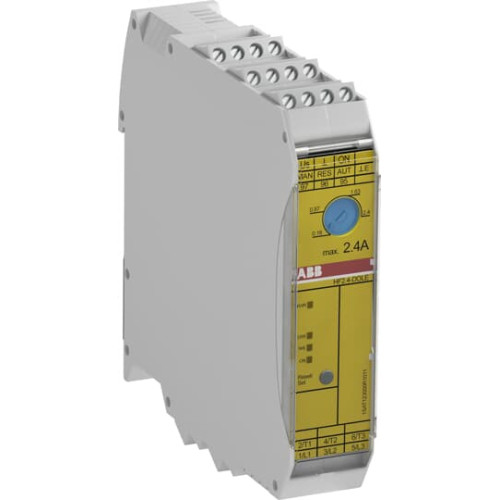

HF2.4-DOLE Electronic Compact Starter 24 VDC

Manufacturer's No: HF2.4-DOLE     Manufacturer: ABB
HF2.4-DOLE Electronic Compact Starter 24 VDC

Availability On Request

£220.04
HF2.4-DOLE Electronic Compact Starter 24 VDC


Product

Manufacturer Material ID -
HF2.4-DOLE
Net Weight -
0.20kg

Additional Product Information

UNSPSC -
39121521

Technical Specification

-
ABB
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Coordination class according to IEC 60947-4-3 -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Release class -
CLASS 10
Type of electrical connection of main circuit -
Screw connection
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage type for actuating -
DC
Ambient temperature, upper operating limit -
80 Degrees celsius
External reset possible -
Kind of motor starter -
Direct starter
Number of command positions -
16
Number of indicator lights -
4
Overload release current setting -
0.18 Ampere
Power consumption -
3.3 Watt
Rail mounting possible -
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
2.4 Ampere
Rated operation current Ie -
2.4 Ampere
Rated operation power at AC-3, 230 V, 3-phase -
0.37 Kilowatt
Rated operation power at AC-3, 400 V -
0.75 Kilowatt
Temperature compensated overload protection -
ABB

Availability On Request

£220.04
