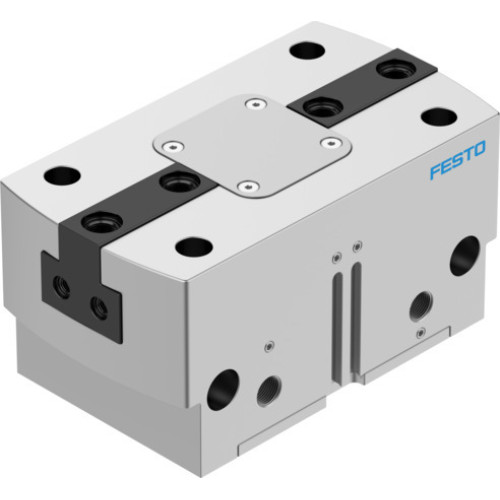

HGPT-80-A-B-F Parallel gripper

Manufacturer's No: HGPT-80-A-B-F     Manufacturer: Festo
HGPT-80-A-B-F Parallel gripper

Availability Available to order

£1,875.55
  • Model: HGPT-80-A-B-F Parallel Gripper
  • Size: 80
  • Gripper Type: Parallel
  • Stroke per Gripper Jaws: 12.5 mm
  • Max. Replacement Accuracy: <= 0.2 mm
  • Max. Angular Gripper Jaw Backlash: <= 0.1 deg
  • Max. Gripper Jaw Backlash: <= 0.02 mm
  • Drive System: Pneumatic
  • Number of Gripper Jaws: 2
  • Gripper Force Backup: None

Read more

  • Design: Wedge-shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 BAR (Normal), 8 BAR (Max), 0 BAR (Blocked Air), 0.5 BAR (Blocked Air Max)
  • Operating Frequency: 2 HZ
  • Opening Time at 0.6 MPa: 212 ms
  • Closing Time at 0.6 MPa: 211 ms
  • Gripping Force: 6550 N (Opening), 6300 N (Closing)
  • Gripper Force per Jaw: 3275 N (Opening), 3150 N (Closing)
  • Mass Moment of Inertia: 150.515 kgcm²
  • Max. Force on Gripper Jaw: 7000 N
  • Max. Torque at Gripper: 180 Nm (Mx), 220 Nm (My), 170 Nm (Mz)
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 4745 g
  • Mounting Types: Female Thread, Centring Sleeve, Through-hole, Dowel Pin
  • Pneumatic Connection: M5 (Blocked Air), G1/4
  • Materials: RoHS-compliant, High-alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Gripper Jaws)
  • Corrosion Resistance Class: 2 (Moderate)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C (Min), 60°C (Max)


Product

Manufacturer Material ID -
HGPT-80-A-B-F
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
9001 1090
Country of Origin -
DE
UNSPSC -
41111926
