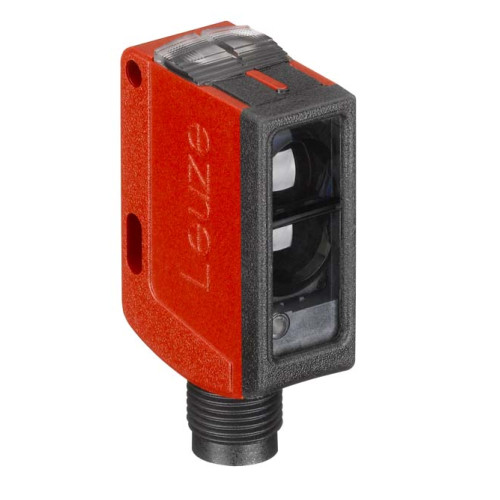

HRT 25B/L69.31-2500 - Diffuse sensor with background suppression

Manufacturer's No: HRT 25B/L69.31-2500     Manufacturer: Leuze
HRT 25B/L69.31-2500 - Diffuse sensor with background suppression

Availability Back Order

POA
The Diffuse sensor with background suppression from . Scanning system: Against object; Operating range limit: 0,05 ... 3 m; Light source: LED, Infrared; Switching frequency: 30 Hz; Supply voltage: 18 ... 30 V, DC; Digital switching outputs: 2 Piece(s); D


Product

Manufacturer Material ID -
HRT 25B/L69.31-2500
Net Weight -
55.00kg

Additional Product Information

UNSPSC -
39121528

Technical Specification

Adjustment range -
- Millimetre
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of electric connection -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Laser protection class -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Material of optical surface -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Voltage type -
DC
Max. output current -
50 Milliampere
Material housing -
Plastic
Ambient temperature -
-30 Degrees celsius
Switching frequency -
30 Hertz
Number of semiconductor outputs with signalling function -
2
Type of switch function -
Anticoincidence
Operation agent-safety class -
Safety class 3
Setting procedure -
Teach-In
Construction type housing -
Cuboid
Type of light -
Infrared light
Min. reflector distance -
5000 Millimetre
Time of reaction -
70 Millisecond
Wavelength of the sensor -
850 Nanometre
Material of cable sheath -
Polyurethane (PUR)
Degree of protection (IP) -
IP66
Width sensor -
15 Millimetre
Height of sensor -
389 Millimetre
Length of sensor -
287 Millimetre
Max. switching distance -
25000 Millimetre
Rated switching distance -
25000 Millimetre
Operating distance -
5000 Millimetre
Triangulation -
Background fade-out
