50129539

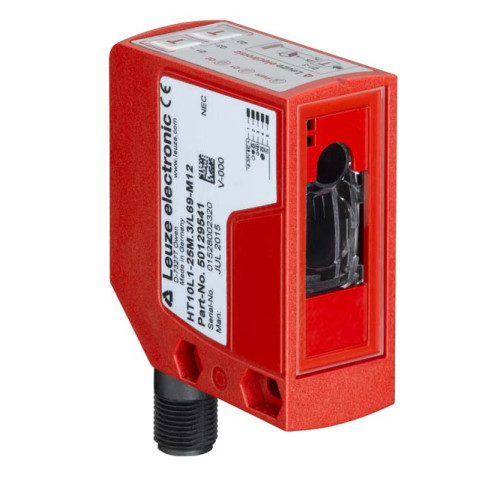

The Diffuse sensor with background suppression from . Operating range limit, white 90%: 0,05 ... 8 m; Light source: Laser, Red; Pr

Manufacturer's No: HT10L1.3/L6T.P1-M12     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit, white 90%: 0,05 ... 8 m; Light source: Laser, Red; Protection class: 1; Switching frequency: 40 Hz; Supply voltage: 18 ..

Availability Back Order

£488.00
  • Application: Compartment fine positioning, Exact object positioning, Push-through protection in pallet warehouse
  • Special version: Teach input, 2 independent switching outputs, Window teach
  • Operating range limit: 0.05m to 8m
  • Light source: Red Laser
  • Protection class: 1
  • Supply voltage: 18V to 30V DC
  • Digital switching outputs: 2 Pieces
  • Switching output 1: Transistor, Push-pull, IO-Link (PNP/NPN)
  • Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
  • Switching frequency: 40 Hz

Read more

  • Interface: IO-Link
  • Connection: M12 Plastic Connector, 5-pin
  • Design: Cubic housing
  • Dimensions: 25mm x 65mm x 55mm
  • Housing material: Plastic
  • Operational controls: Membrane keyboard
  • Ambient temperature during operation: -40°C to 50°C
  • Degree of protection: IP 67

Accessories



Product

Manufacturer Material ID -
HT10L1.3/L6T.P1-M12
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Material housing -
UN
Adjustment range -
- Millimetre
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
Material of cable sheath -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Operating distance -
- Millimetre
Time of reaction -
50 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
65 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
55 Millimetre
Material of optical surface -
Glass
Max. output current at protected output -
0 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
18 Volt
Reaction time -
50 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
40 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Connector M12
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
Other
Voltage type -
DC
Wavelength of the sensor -
658 Nanometre
Width sensor -
25 Millimetre
