50134357

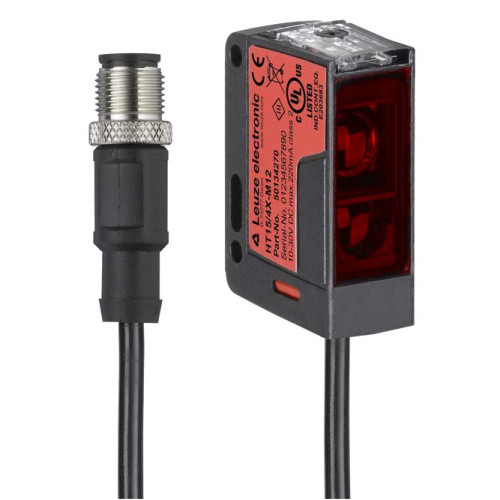

The Diffuse sensor with background suppression from . Operating range limit: 0.012 ... 1 m; Light source: LED, Infrared; Supply vo

Manufacturer's No: HT15I/4X-200-M12     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit: 0.012 ... 1 m; Light source: LED, Infrared; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Swit

Availability On Request

£103.00
  • Operating range limit: 0.012
  • 1 m
  • Light source: LED, Infrared
  • Supply voltage: 10
  • 30 V DC
  • Switching outputs: 1 digital output
  • Switching output type: Transistor, PNP, Light switching
  • Switching frequency: 500 Hz
  • Connection: Cable with connector, 200 mm, M12, 4-pin Plastic
  • Housing design: Cubic

Read more

  • Dimensions: 15 mm x 42.7 mm x 30 mm
  • Housing material: Plastic
  • Operational controls: Multiturn potentiometer
  • Ambient temperature during operation: -40
  • 60 °C
  • Degree of protection: IP 67

Accessories



Product

Manufacturer Material ID -
HT15I/4X-200-M12
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
UNSPSC -
39121528

Technical Specification

Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
1 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Adjustment range -
50 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
42.7 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operating distance -
12 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
500 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
850 Nanometre
Width sensor -
15 Millimetre
Leuze

Availability On Request

£103.00
