50127056

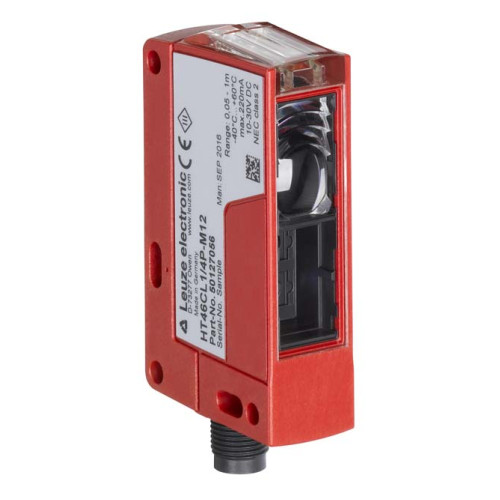

The Diffuse sensor with background suppression from . Operating range limit: 0,05 ... 1 m; Light source: Laser, Red; Protection cl

Manufacturer's No: HT46CL1/4P-M12     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit: 0,05 ... 1 m; Light source: Laser, Red; Protection class: 1; Switching frequency: 250 Hz; Supply voltage: 10 ... 30 V, DC

Availability On Request

£190.00
The Diffuse sensor with background suppression from . Operating range limit: 0,05 ... 1 m; Light source: Laser, Red; Protection class: 1; Switching frequency: 250 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Digital switchi


Product

Manufacturer Material ID -
HT46CL1/4P-M12
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
Material of cable sheath -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
2 Millisecond
Degree of protection (IP) -
IP67
Voltage type -
DC
Maximum output current -
100 Milliampere
Housing material -
Plastic
Adjustment range -
120 Millimetre
Ambient temperature -
-40 Degrees celsius
Switching frequency -
250 Hertz
Number of semiconductor outputs with signalling function -
2
Number of contact energized outputs with signalling function -
0
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Connector M12
Type of switching output -
PNP
Type of switch function -
Other
Rated control supply voltage at DC -
10 Volt
Operation agent-safety class -
Safety class 3
Setting procedure -
Manual adjustment
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Laser protection class -
Class 1
Type of light -
Laser diode, red light
Max. output current at protected output -
0 Milliampere
Reaction time -
2 Millisecond
Switching voltage of OSSD at state "high" -
0 Volt
Operating distance -
50 Millimetre
Wavelength of the sensor -
655 Nanometre
Material of optical surface -
Plastic
Degree of protection (IP rating) -
IP67
Width sensor -
20.5 Millimetre
Height of sensor -
76.3 Millimetre
Length of sensor -
44 Millimetre
Sensing mode -
Light switching
Triangulation -
Background fade-out
Leuze

Availability On Request

£190.00
