50134609

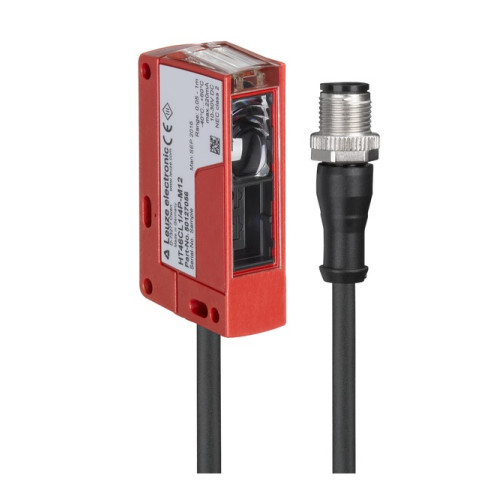

Diffuse sensor with background suppression Operating range limit: 0.05 ... 1.2 m; Light source: Laser, Red; Protection class: 2; S

Manufacturer's No: HT46CL2/4P-200-M12     Manufacturer: Leuze
Diffuse sensor with background suppression Operating range limit: 0.05 ... 1.2 m; Light source: Laser, Red; Protection class: 2; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s)

Availability On Request

£226.00
  • Operating Range: 0.05m to 1.2m
  • Light Source: Red Laser
  • Protection Class: 2
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 2
  • Switching Output 1: Transistor, PNP, Light switching
  • Switching Output 2: Transistor, PNP, Dark switching
  • Switching Frequency: 500 Hz
  • Connection: 200mm Cable with M12 Plastic Connector (4-pin)
  • Housing Design: Cubic

Read more

  • Dimensions: 20.5mm x 76.3mm x 44mm
  • Housing Material: Plastic
  • Operational Controls: Multiturn Potentiometer
  • Ambient Temperature: -40°C to 60°C
  • Degree of Protection: IP 69K, IP 67

Accessories



Product

Manufacturer Material ID -
HT46CL2/4P-200-M12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
1 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Adjustment range -
120 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
44 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
50 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
500 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Laser diode, red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
655 Nanometre
Width sensor -
20.5 Millimetre
