50136089

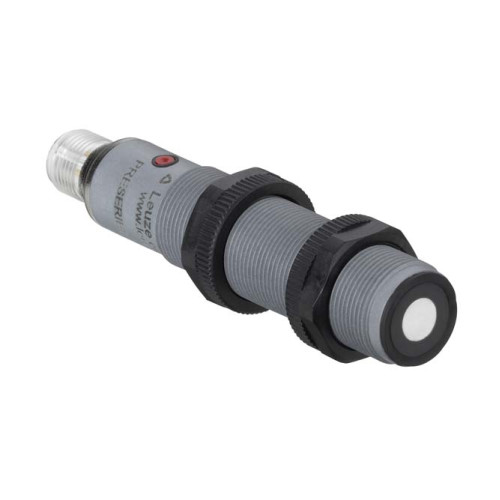

The Ultrasonic sensor from . Special design: 2 independent switching points; Operating range: 0.15 ... 1.6 m; Opening angle: 8 &d

Manufacturer's No: HTU318-1600.3/2NK-M12     Manufacturer: Leuze
The Ultrasonic sensor from .  Special design: 2 independent switching points; Operating range: 0.15 ... 1.6 m; Opening angle: 8 °; Direction of beam: Front; Supply voltage: 10 ... 30 V, DC; Digital

Availability Back Order

£220.00
  • Special version with 2 independent switching outputs
  • Multiplex and synchronous operation
  • Operating range: 0.15 to 1.6 meters
  • Beam direction: Front
  • Opening angle: 8 degrees
  • Supply voltage: 10 to 30 volts DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, NPN, normally open
  • Switching output 2: Transistor, NPN, normally closed
  • Inputs/outputs: 1 piece

Read more

  • Switching frequency: 2 Hz
  • Connection: M12 5-pin connector
  • Design: Cylindrical M18
  • Dimensions: 18 mm x 91.6 mm
  • Housing material: Plastic
  • Operational controls: Control buttons

Accessories



Product

Manufacturer Material ID -
HTU318-1600.3/2NK-M12
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Type of analogy output -
UN
Standard for interfaces -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Blind zone -
150 Millimetre
Adjustable distance -
150 Millimetre
Measuring range length -
150 Millimetre
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Plastic
Length of sensor -
91.6 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Other
Maximum output current -
100 Milliampere
No load current -
50 Milliampere
Relative linearity deflection -
1 Percentage
Relative repeat accuracy -
0.5 Percentage
Setting procedure -
Manual adjustment
Supply voltage -
10 Volt
Switching frequency -
2 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Voltage type -
DC
Leuze

Availability Back Order

£220.00
